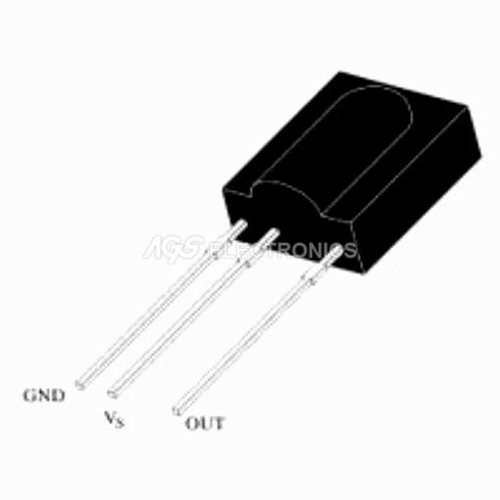

Infra-Red Receiver 5mm HS0038 = LA0224

37.9 KHz Three Leg

Product Code: LA0222

$2.50

Pay it in 4 payments of $0.62 with Afterpay

Buy 1+ $2.50 (incl. GST)
Buy 10+ $2.25 (incl. GST)
Buy 50+ $2.00 (incl. GST)
Jump to:
Manuals and Downloads

IR sensor tuned to 38KHz, perfect for receiving commands from a TV remote control to Arduino etc

Runs at 5V (although it seems to be OK down to 3.3V)To use, connect pin 3 (all the way to the right) to 5V power, pin 2 (middle) to ground and listen on pin 1. It doesn’t do any decoding of the signal, just passes the ‘raw data’ along.

IR receiver which will help you to interface your TV remote with arduino. The TSOP outputs a constant HIGH signal when idle and as it receives data, it tends to invert the data. i.e when an IR LED is transmitting data onto the TSOP, every time the IR led goes high, the TSOP will go LOW and vice versa. Remote control signals are often bytes of data that is encoded and transmitted by pulsing(switching ON & OFF the IR LED at a specific frequency) Most TV remote controls work at 32-40 Khz frequency and most receivers can receive this range.  The SIRC protocol uses a pulse width encoding of the bits. The pulse representing a logical "1" is a 1.2ms long burst of the 40kHz carrier, while the burst width for a logical "0" is 0.6ms long. All bursts are separated by a 0.6ms long space interval.

Features

Photo detector and preamplifier in one package

Internal filter for PCM frequency

Improved shielding against electrical field disturbance

TTL and CMOS compatibility

Output active lowDLow power consumption

High immunity against ambient light

Continuous data transmission possible (800 bit/s)

Suitable burst length ≥10 cycles/burst
