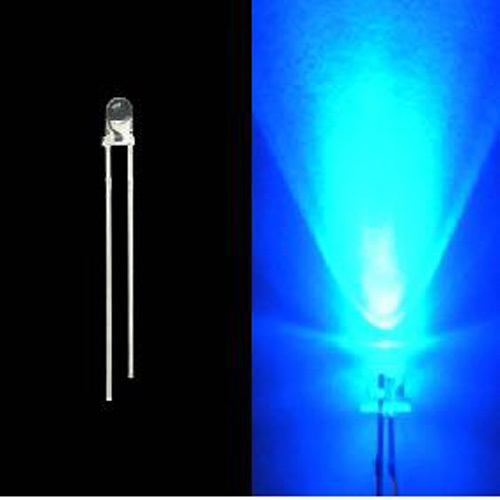

L.E.D 5.0mm UV Ultra Violet

Ultra Violet 5mm

Product Code: LA0820

$1.20

Pay it in 4 payments of $0.30 with Afterpay

Buy 1+ $1.20 (incl. GST)
Buy 10+ $1.10 (incl. GST)
Buy 50+ $0.95 (incl. GST)
Buy 100+ $0.80 (incl. GST)
Store Stock:
Henderson In Stock
Albany In Stock

Long lasting and very intense

Specifications:
Diameter: 5mm
Emitted color: UV/ Purple
Lens Colour : Water Clear
Wave Length:395~400nm
Forward Voltage (V) : 3.2 ~ 3.8
Reverse Current (uA) : <=30
Luminous Intensity Typ Iv (mcd) : Average in 2000
Life Rating : 100,000 Hours
Viewing Angle : 20 ~ 25 Degree
Absolute Maximum Ratings (Ta=25°C)
Max Power Dissipation : 80mw
Max Continuous Forward Current : 30mA
Max Peak Forward Current : 75mA
Reverse Voltage : 5~6V
Lead Soldering Temperature : 240°C (<5Sec)
Operating Temperature Range : -25°C ~ +85°C
Preservative Temperature Range : -30°C ~ +100°C
