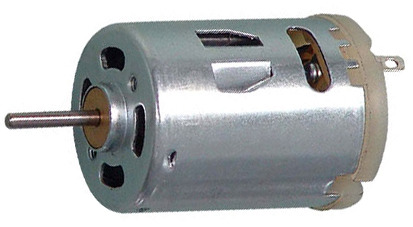

Motor. DC 6 volts - 12volts
Medium Torque High Speed
Product Code: MOT0022
$4.00
Pay it in 4 payments of $1.00 with
Jump to:
Each motor briefly described below is a quality product
with hardened drive shaft, sintered bearings
- Torque 62g-cm
- 2.3mm driveshaft
- M2.6 threaded mounting
- Generously ventilated
- Solder tag terminals
Voltage:6V - 12V
NO LOAD
Speed (RPM): 15700
Current (AMP): 0.30
AT MAX EFFICIENCY
Efficiency(%):49.6
Power (W):
Speed Min (RPM): 12510
Torque (G.CM):62
Current (AMP): 1.2
DIMENSIONS
Diameter: 27.6mm
Total Length: 51mm
Shaft Length: 12.5mm
Shaft dia: 2.3mm
Mounting thread dia: 2.6mm
