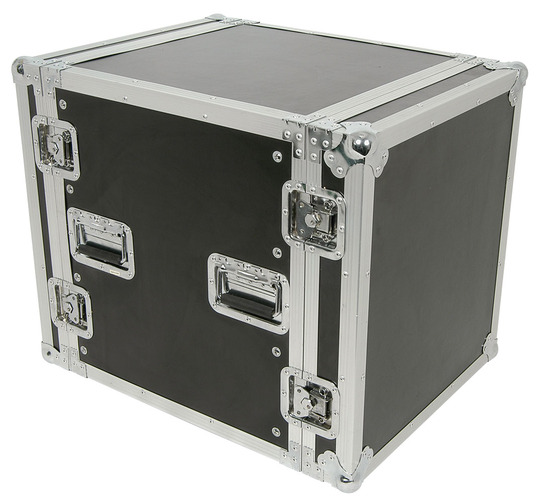

19" Rack Case - 12U High
Ply & Aluminium, Lockable
Product Code: 171.736
19" Flightcases for Audio Equipment
Flightcases for mounting 19" audio equipment. Fitted with heavy duty handles, protective corner pieces and removable front and rear lids. Made from 9mm plywood with washers on all the rivets to strengthen and protect the wood from splitting.
Ideal for safe transport of your expensive equipment
9mm vinyl laminated plywood construction
Fitted with heavy duty lockable handles, protective corner pieces and removable lids
Standard 19 inch mount allows fitment of pro audio products
Reinforcement plates behind all rivets

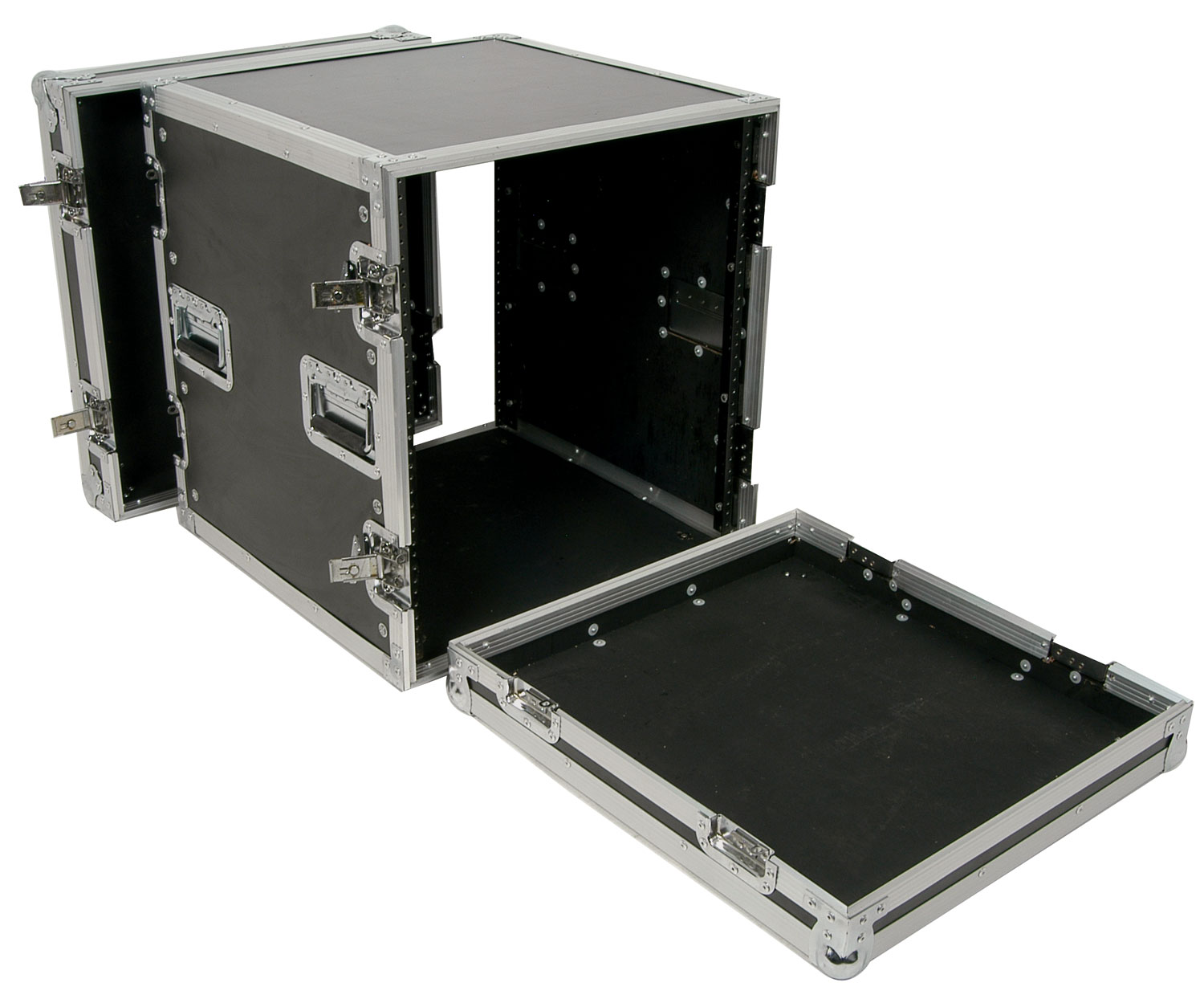

Removable front and rear panel via butterfly catches
Aluminium profiles all around
Cage Nuts and mounting hardware supplied
Available in 2, 3, 4, 6, 8, 10, 12 and 16U versions
|
Code |
Size |
External |
Internal |
|
171.730 |
2U |
610 x 115 x 520mm |
460 x 100 x 505mm |
|
171.733 |
3U |
600 x 160 x 520mm |
470 x 140 x 500mm |
|
171.426 |
4U short |
440 x 225 x 520mm |
420 x 185 x 500mm |
|
171.427 |
4U |
595 x 205 x 520mm |
460 x 185 x 500mm |
|
171.430 |
6U |
595 x 290 x 520mm |
460 x 275 x 500mm |
|
171.433 |
8U |
620 x 395 x 530mm |
465 x 365 x 510mm |
|
171.436 |
10U |
680 x 480 x 530mm |
525 x 455 x 505mm |
|
171.736 |
12U |
680 x 575 x 530mm |
525 x 545 x 505mm |
|
171.739 |
16U |
680 x 750 x 530mm |
520 x 720 x 505mm |
