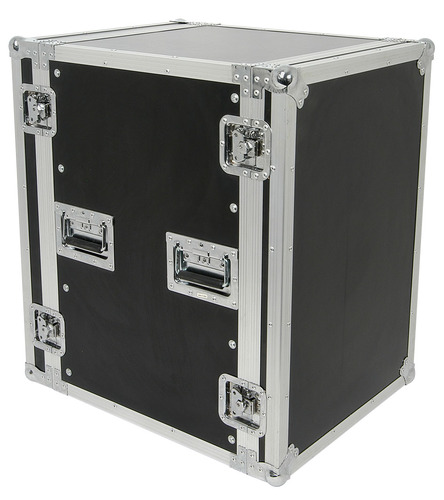

19" Rack Case - 16U High

19" Flightcases for Audio Equipment 16U

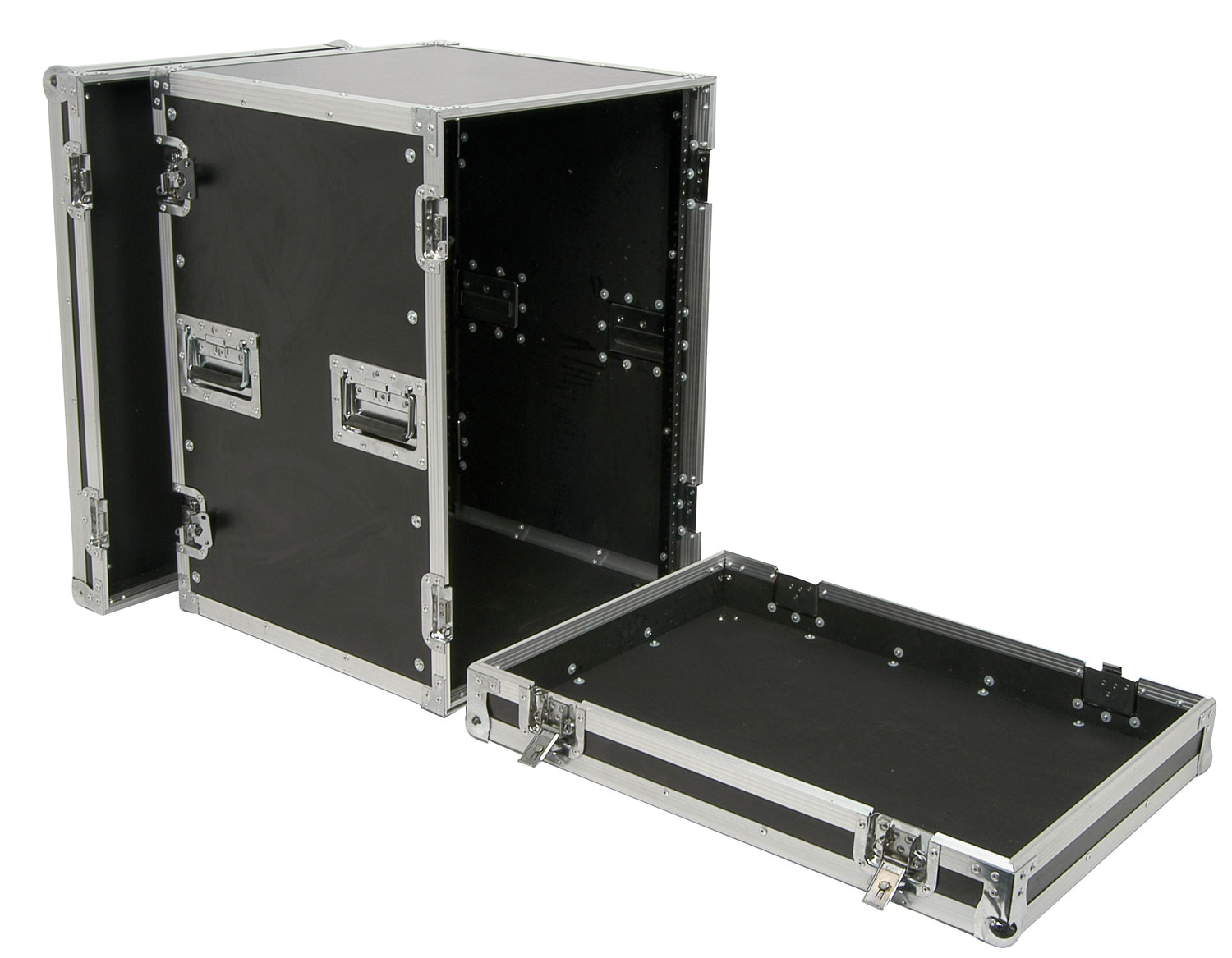

• Flightcases for mounting 19" audio equipment. Fitted with heavy duty handles, protective corner pieces and removable front and rear lids. Made from 9mm plywood with washers on all the rivets to strengthen and protect the wood from splitting.



• Ideal for safe transport of your expensive equipment
• 9mm vinyl laminated plywood construction
• Fitted with heavy duty handles, protective corner pieces and removable lids

  Weight     24kg Fixing rails      Front and rear Internal dimensions    520 x 720 x 500mm External dimensions   687 x 755 x 535mm Size  16U   Available in 2, 3, 4, 6, 8, 10, 12 and 16U versions

                                         External                                          Internal

171.730	2U	630 x 135 x 535mm	460 x 100 x 500mm
171.733	3U	625 x 180 x 535mm	470 x 150 x 500mm
171.426	4U short	450 x 225 x 535mm	280 x 185 x 500mm
171.427	4U	635 x 230 x 535mm	460 x 190 x 500mm
171.430	6U	635 x 310 x 535mm	460 x 275 x 500mm
171.433	8U	635 x 410 x 535mm	465 x 365 x 500mm
171.436	10U	695 x 490 x 535mm	525 x 455 x 500mm
171.736	12U	695 x 585 x 535mm	525 x 540 x 500mm
171.739	16U	687 x 755 x 535mm	520 x 720 x 505mm
