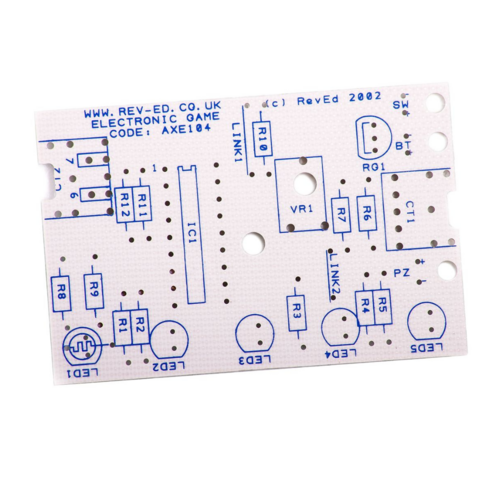

Picaxe Electronic Game PCB

Blank pcb for the electronic game. Use a microcontroller to control 5 LEDs- with a sounder- speed control and large 'start' push switch.

The Electronic Game uses an 18-pin PICAXE microcontroller to create an electronic game providing 5 LED indicators, a piezo sounder with switch and variable resistor inputs. The project can be configured as an electronic dice, a countdown timer or as an independent game by simply re-programming the microcontroller.

The electronic game can be programmed using any software application that supports the PICAXE hardware, including the free PICAXE Programming Editor and/or Logicator for PIC Micros software.
