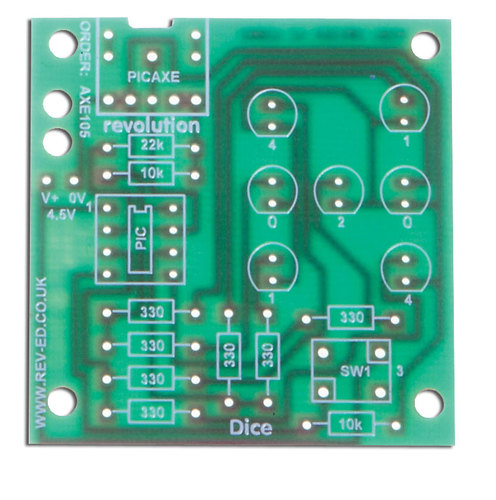

Picaxe Electronic Dice PCB

PCB Only

Product Code: AXE105

$4.50

Pay it in 4 payments of $1.12 with Afterpay

Buy 1+ $4.50 (incl. GST)
Buy 10+ $4.30 (incl. GST)
Buy 25+ $4.10 (incl. GST)
Store Stock:
Henderson In Stock
Albany In Stock

The Dice project uses an 8-pin PICAXE microcontroller to create an electronic dice with seven LEDs arranged in a familiar dice pattern controlled by the PICAXE to show the number rolled.

The electronic dice can be programmed using any software application that supports the PICAXE hardware, including the free PICAXE Programming Editor and/or Logicator for PIC Micros software.



PCB Only for the Dice project. Uses an 8 pin microcontroller to generate an electronic dice.

Parts you will need to add to make the AX105 dice



QTY CODE   DESCRIPTION
7 CR0101 R1 to 7 330R resistor
1 CR0111.8 R8 22k resistor
2 CR0111 R9,10 10k resistor
6 LA0060 LED1 to 7 5mm LEDs
1 ESP0602 SW1 push switch
1 CS0601 IC1 8 pin IC socket
1 AXE007M2 IC1 PICAXE-08 microcontroller
1 PICCON039 CT1 PICAXE download 3.5mm socket
1 BH0028 BT1 4.5V (3xAA) battery box
1 AEX105 PCB printed circuit board
