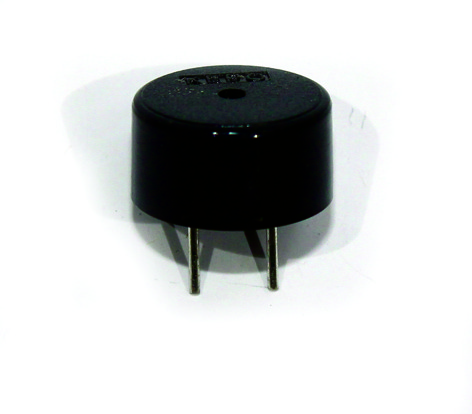

Piezo Buzzer Minature, PCB Mount, 3 to 12 Volt DC
14mm x 7.5mm
Product Code: SBP0110
SBP0110 Piezo Buzzer Miniature, PCB Mount
Product ID | KPI-G1410 |
Rated voltage | 12VDC |
Operating Voltage | 1.5~16VDC |
Max.Rated Current | 8mA at 12VDC |
Min.Sound Pressurel Level | 85dB at 12VDC/10cm |
Resonant Frequency | 4.0?0.5KHz |
Tone Nature | Continuous |
D(mm) | ?14.1 |
H(mm) | 7.8 |
Operating Temperature | -20~+70?C |
Weight | 2g |
