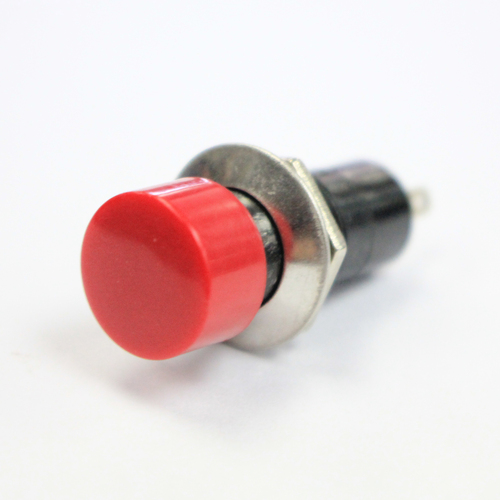

Switch Push Momentary Button, Push On, 1 Amp 250V

SW0132 Switch Push Button, Push On, 1 Amp 250V

Specification

1. Product Name：PBS-16A,PBS-16B,PBS-16C
2. Rating：3A 125VAC；1A 250VAC
3. Contact Resistance:20mΩ max
4. Insulation Resistance:500VDC 100MΩ min
5. Dielectric Strength:1000VAC 1Minute
6. Operating Temperature:-25℃~+85℃
7. Electrical Life:50000 Cycles
8. Push-button color:Red、White、Green、Black、Orange、Yellow、Blue
9. Circuitry trait:ON-OFF,OFF-(ON),ON-(OFF)    ()Indicates Momentary
10. Certification system：TUV、UL、IOS9001:2015、CE、ENECandOther
