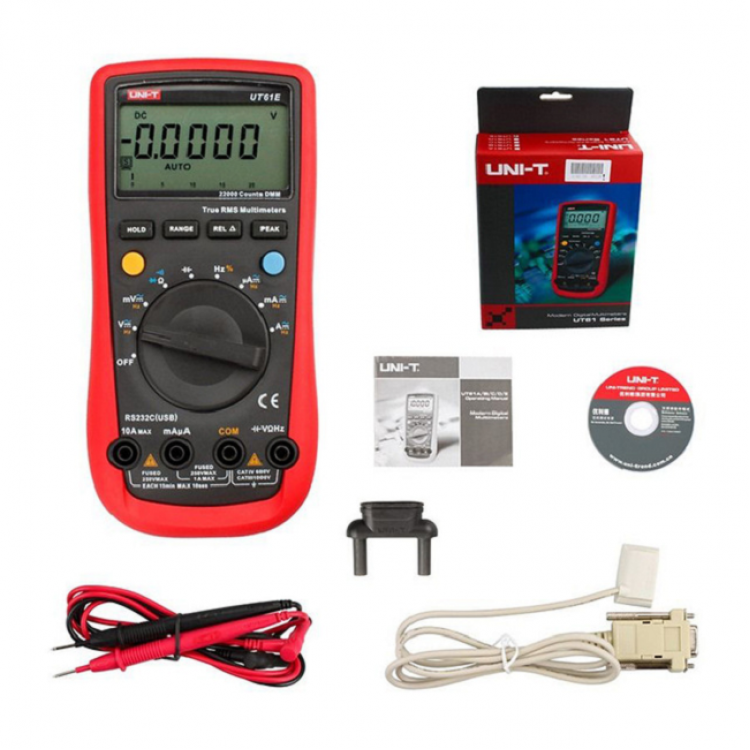

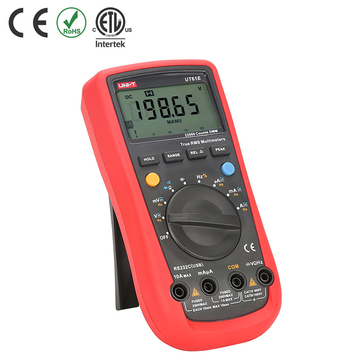

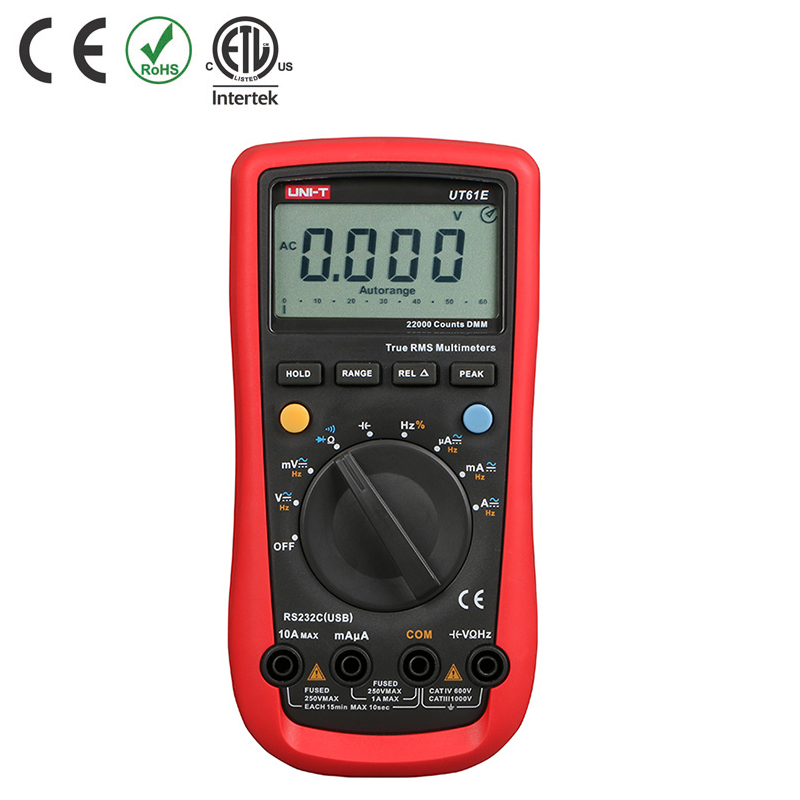

UT61E Multimeter - Professional Full Range

True RMS UT 61E multimeter (CAT IV / 600 V) by UNI-T

There is not much this meter will not do. It is our top of the range meter
The UT 61e multimeter offers diverse functions such as: Hold function, max./ min./ relative and peak value to allow for a quick and secure measurement.
In AC current and voltage measurements, the UT 61E multimeter indicates the real effective value (TRUE RMS), it has a frequency range from 45 Hz to 3 kHz, the UT 61E multimeter can measure both capacitance and frequency.

Through the RS-232 port, data can be transferred and stored by means of the software.
The Auto range function is able to automatically search the optimum measurement range, however it can be selected manually. Te UT61E has a clear high contrast backlight LCD display with a indicator up to 22000 to allow for a good reading from any viewing angle even with poor light conditions. It comes with a housing to protect it against harsh conditions

UT61 Series can measure AC/DC voltage and current UT61E has true RMS, resistance, diode, circuit continuity, capacitance, frequency, temperature, hFE, electromagnetic induction, etc.

UT61 Series complies with the standard IEC61010: CAT. III 1000V, CAT.IV 600V; they are widely used in Industrial Production and Service, Technological Research and Design, College Education (Laboratory, Courses), and Automotive Industry.

Features :

• True RMS
• Real time data logging on PC via RS-232 (Included)
• 22,000 counts
• Large LCD display with analogue bar graph.
• Auto / Manual ranging.
• Peak value display.
• Diode measuring function.
• Continuity Buzzer
• Data Hold function.
• Relative (REL) mode.
• Sleep mode at approximately 15 minutes.
• Low battery indication.
• Input protection.
• 10 MOhm Input Impedance for DC Voltage Measurement
