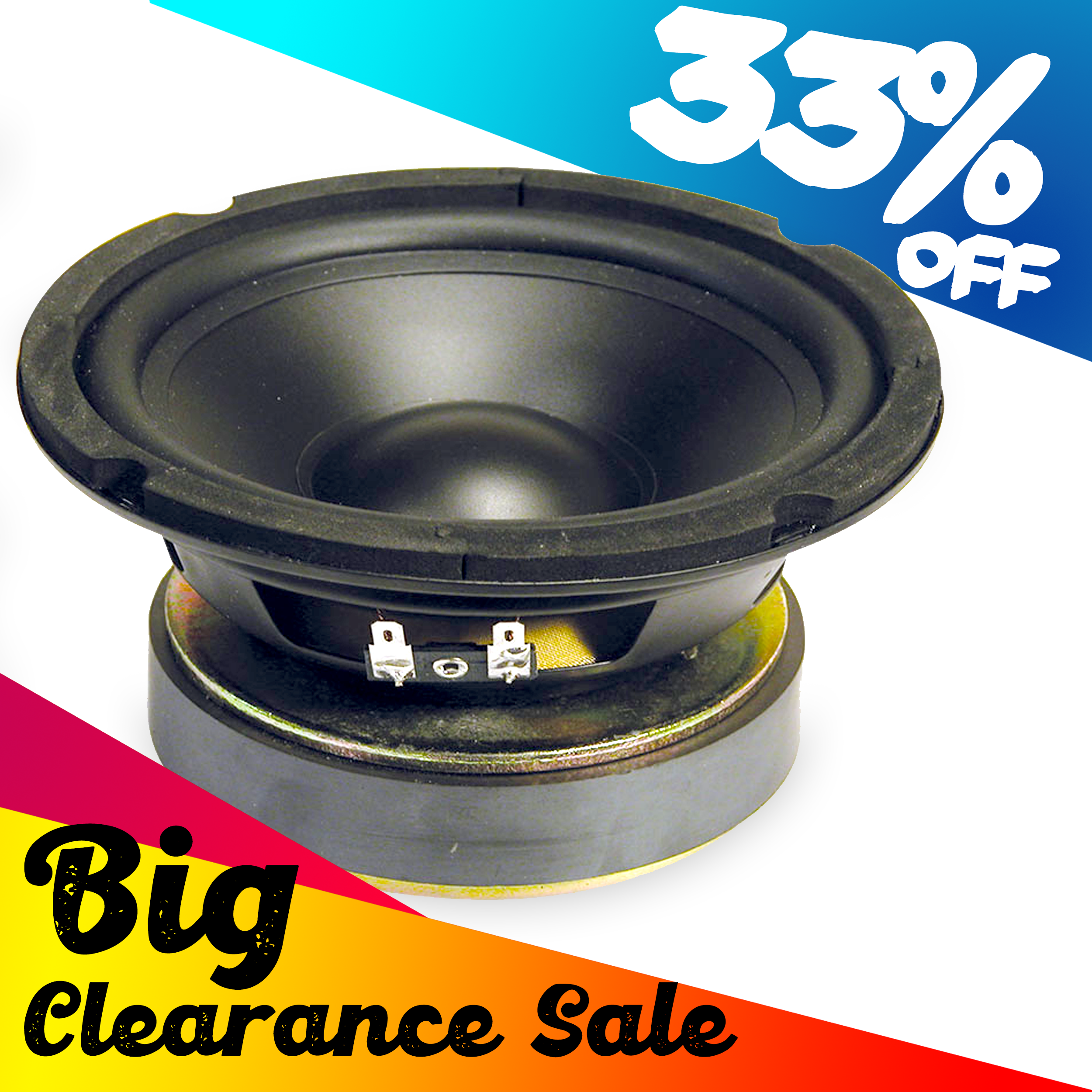

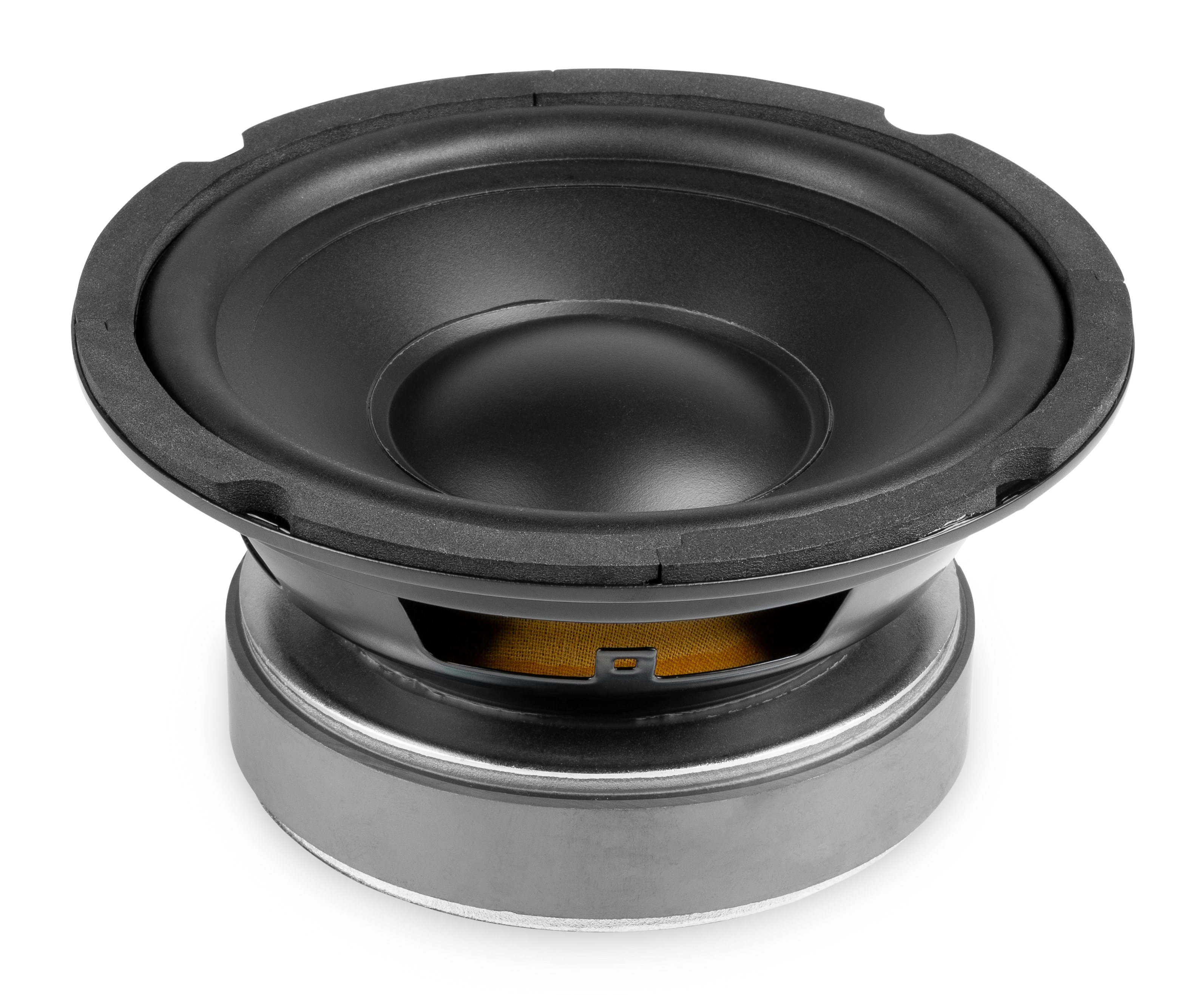

Polypropylene Cone HI-FI WOOFERS

A range of high performance chassis speakers with polypropylene cones and rubber edge surrounds housed in strong steel baskets. They also feature heavy magnets and high quality voice coils, which make them suitable for most car audio and Hi-Fi applications.

  • POLY-MICA CONE
  • RUBBER SURROUND
  • HIGH TEMPERATURE VOICE COIL
  • Polypropylene
  • Rubber edge
  • Black metal chassis
  • Vented magnets
  • Spade terminals



Code  902.193 Power max.     175W Power rms  85W Depth      85mm Diameter      16cm (6.5") Frequency response 35Hz - 8kHz Magnet weight 850gm (30oz) SPL @ 1W/1m 85dB Voice coil    5cm (2") Weight         1.975kg Mounting hole centres 110 x 110mm -
 Packed Gift Box


Thiele small parameters





Pdficon Info / Manual
