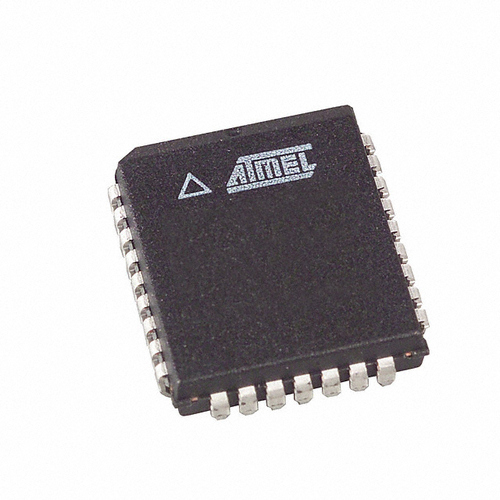

ATMEL 29C010A 1 Megabit 128K x 8 5-volt Only CMOS Flash Memory
Product Code: CT1100
ATMEL 29C010A 1 Megabit 128K x 8 5-volt Only CMOS Flash Memory
Description
The AT29C010A is a 5-volt-only in-system Flash programmable and erasable read
only memory (PEROM). Its 1 megabit of memory is organized as 131,072 words by 8
bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device
offers access times to 70 ns with power dissipation of just 275 mW over the commercial
temperature range. When the device is deselected, the CMOS standby current is
less than 100 mA. The device endurance is such that any sector can typically be written
to in excess of 10,000 times.
To allow for simple in-system reprogrammability, the AT29C010A does not require
high input voltages for programming. Five-volt-only commands determine the opera-
