Graphic Equaliser - Dual 15 Band
Citronic - 2 x 15 equaliser
Product Code: 170.923
This product is coming soon, and is due to arrive on or near February 05, 2025
Jump to:
Coming Soon

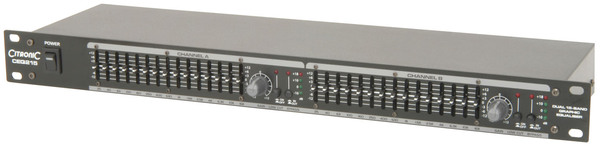

The CEQ215 is a 19" rack mounted dual 15-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 25Hz to 16kHz for accurate audio spectrum control.
- 2 x 15-band 2/3 octave ISO spacing
- RF filtered servo-balanced inputs
- Constant Q each band
- Bypass switch for EQ comparison
- Low-cut switch each channel
- Gain control each channel
- LED VU meters
- 19" rackmount 1U
| Power supply | 230Vac 50Hz (IEC) |
|---|---|
| Frequency response | 20Hz - 20kHz |
| Input impedance : Balanced | 40kohms |
| Input impedance : Unbalanced | 20kohms |
| Output impedance : Bal/Unbal | 330ohms |
| Channel separation | >50dB |
|---|---|
| Signal to noise ratio | >102dB |
| THD | 0.005% |
| Dimensions | 482 x 44 x 138mm |
| Weight | 2.0kg |
