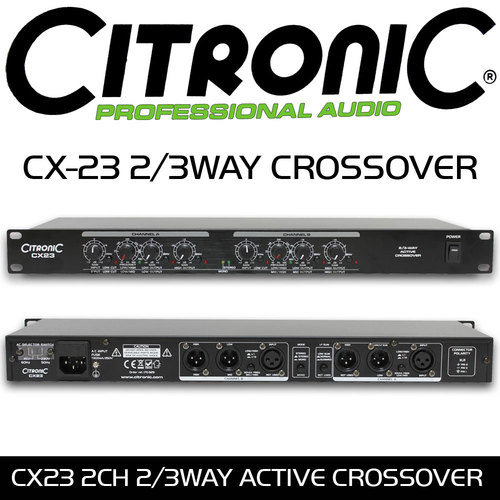

Citronic CX23 Active Crossover
2 / 3 Way - Stereo / Mono
Product Code: 170.929
$199.00
Pay it in 4 payments of $49.75 with
The CX23 is a 2-way stereo or 3-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.
- 2-way stereo, 3-way mono crossover
- 19" rack mountable
- Butterworth filters - 18dB/octave
- Continuously adjustable cutoff frequencies
- 40Hz ultra-low frequency cut
- Phase invert function
- Inputs and outputs via XLR
| Power supply | 230Vac selectable 50Hz |
|---|---|
| Input impedance: balanced | 40k ohms |
| Input impedance: unbalanced | 20k ohms |
| Output impedance | 220 ohms |
| Crossover ranges: stereo | 50Hz-5kHz;750Hz-7.5kHz |
| Crossover ranges: mono | 50Hz-5kHz;750Hz-7.5kHz; 2kHz-20kHz |
| Filter slope | 18dB/octave |
|---|---|
| Frequency response | 20Hz-25kHz +0/-1dB |
| Signal to noise ratio | >90dB |
| THD | 0.006% |
| Dimensions | 482 x 44 x 170mm |
| Weight | 2.5Kg |
