Electret Mic Insert 2 pin
6mm x 5mm
Product Code: MIC0006
$2.00
Pay it in 4 payments of $0.50 with
| Buy 1+ | $2.00 (incl. GST) |
| Buy 10+ | $1.88 (incl. GST) |
| Buy 25+ | $1.69 (incl. GST) |
| Buy 50+ | $1.63 (incl. GST) |
| Buy 100+ | $1.13 (incl. GST) |

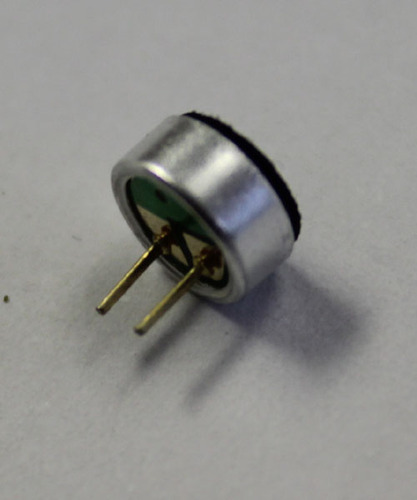

A subminiature omni directional electret microphone insert.
- PCB pins for direct mounting to printed circuit boards
Frequency response 50Hz to 12kHz
Impedance 300Ω
Sensitivity –60 ±3dB
(0dB = 1V/1µ bar, 1kHz, VCC = 4.5V, RL = 1K)
Operating voltage 1.5V to 10V (standard voltage 4.5V)
Dimensions 6mm x 5mm
Signal to noise ratio >40B
Current drain 0.4mA max.
Maximum input 120dB SPL
