Graphic Equaliser - Dual 31 Band
2 U Rackmount - 2 x 31 Band
Product Code: 170.926

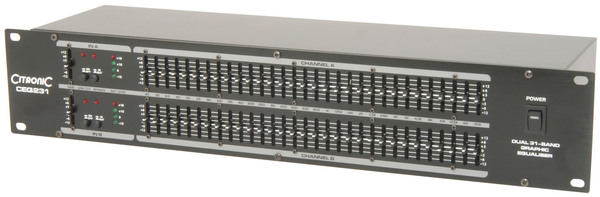

CEQ231 DUAL 31-BAND GRAPHIC EQ
The CEQ231 is a 19" 2U rack mounted dual 31-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 20Hz to 20kHz for ultimate EQ control.
- 2 x 31-band 1/3 octave ISO spacing
- RF filtered servo-balanced inputs
- Constant Q each band
- Bypass switch for EQ comparison
- Low-cut switch each channel
- Gain control each channel
- LED VU meters
- 19" rackmount 2U
| Power supply | 230Vac, 50Hz (IEC) |
|---|---|
| Frequency response | 20Hz-20kHz |
| Input impedance : Balanced | 40kohms |
| Input impedance : Unbalanced | 20kohms |
| Output impedance : Bal/Unbal | 330ohms |
| Channel separation | >50dB |
|---|---|
| Signal to noise ratio | >102dB |
| THD | 0.005% |
| Dimensions | 482 x 88 x 139mm |
| Weight | 3.3kg |
