Active Crossover - 2 / 3 Stereo 4 Way Mono

19 Inch Rackmount

Product Code: 170.932

$239.00

Pay it in 4 payments of $59.75 with Afterpay

Store Stock:
Henderson In Stock
Albany Low Stock - call to confirm

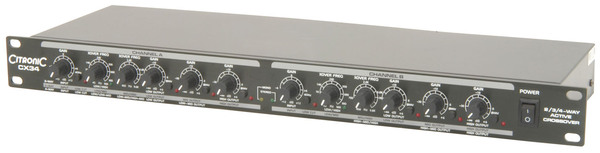

CX34 ACTIVE CROSSOVER - 2 / 3 / 4-WAY

The CX34 is a 2 or 3-way stereo or 4-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.

  • 2 or 3-way stereo, 4-way mono crossover
  • 19" rack mountable
  • Linkwitz-Riley 24dB/octave, state variable
  • Continuously adjustable cutoff frequencies
  • 40Hz ultra-low frequency cut
  • Phase invert function
  • Inputs and outputs via XLR
Power supply 230Vac, 50Hz (IEC)
Input impedance: balanced 50k ohms
Input impedance: unbalanced 25k ohms
Output impedance 200 ohms
Crossover ranges 45-960Hz (switchable 10x) or 450Hz-9.6kHz
Filter slope 24dB/octave
Frequency response 20Hz - 20KHz, +0/-0.5dB
Signal to noise ratio >90dB
THD <0.004% @ +4dBu, 1KHz
Dimensions 482 x 44 x 170mm
Weight 2.5kg
