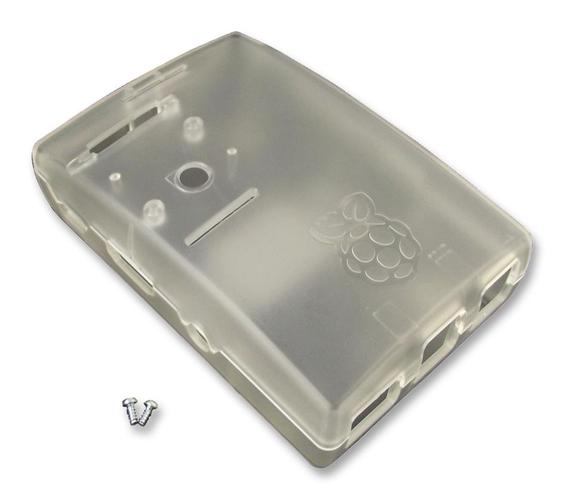

Clear Enclosure - Raspberry Pi 2b & 3
Product Code: RPI0201
Product Overview
Clear Raspberry Pi case for Model B+, Raspberry Pi 2 Model B and Raspberry Pi 3 Model B. This case features an easy snap fit design with cut outs for all hardware features. This case can be mounted on to any surface using the two screw slots on the under side, the case is also vented underneath to prevent over heating. This case supports the Raspberry Pi camera by mounting inside the top with two screws and cut out for pin hole camera. The top of the case features three cutouts for feeding ribbon cables out of the case for the Raspberry Pi camera and touch screen display.
Clear transparent case
ABS material with a smooth finish
Supports mounting for Raspberry Pi camera board
Ventilation for heat dissapation
Snap-fit design
Raspberry Pi logo displayed on top
Rubber feet
Cut outs for connectors and ribbon cables
Back to top
Product Specifications, Documents & More
For Use With Raspberry Pi Model B+, Raspberry Pi 2 Model B & Raspberry Pi 3 Model B
External Height 33.15mm
External Width 63.1mm
External Depth 94.25mm
Enclosure Material ABS (Acrylonitrile Butadiene Styrene)
Body Colour Transparent
