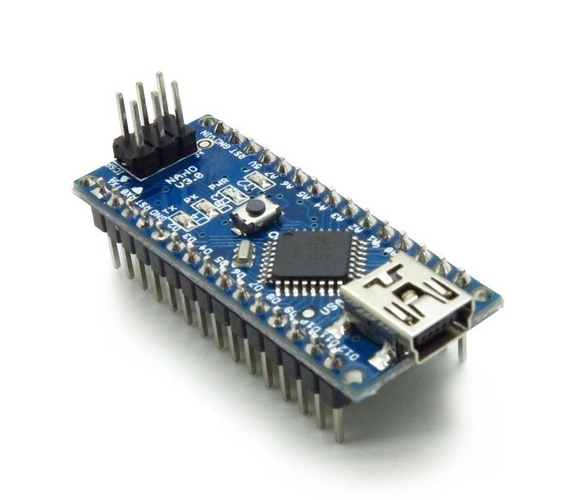

Arduino Nano V3.0 ATmega328P

CH340 Version

Product Code: MOD0330

$13.20

Pay it in 4 payments of $3.30 with Afterpay

Buy 1+ $13.20 (incl. GST)
Buy 10+ $12.50 (incl. GST)
Buy 20+ $11.90 (incl. GST)
Store Stock:
Henderson In Stock
Albany In Stock

Click here for more info on how to install the CH340 driver.



100% New, Arduino-Compatible Board


Fully Compatible to Arduino Nano V3.0 ATmega328P-AU

Data
ATmega328 Microcontroller
Bootloader installed, ready to upload sketches from Arduino software
Microcontroller ATmega328P-AU
Operating Voltage 5V
Input Voltage (recommended) 7V-12V
Input Voltage (limits) 6V-20V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328) of which 2 KB used by bootloader
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz

Specifications:
Dimention:about 45mm x 17mm x 19mm
Net weight:24g
Package weight:34g
Color:Blue



USB lead not included

Power:

The EDArduino Nano can be powered via the Mini-B USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
