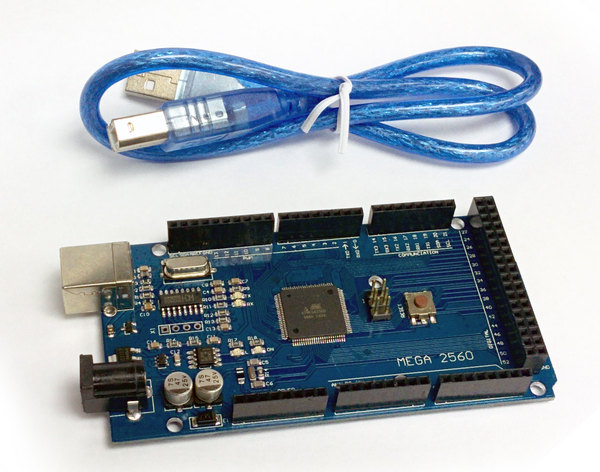

Arduino Mega 2560 R3 - + USB Cable

CH340G - DCCduino version

Product Code: MOD0265

$32.50

Pay it in 4 payments of $8.12 with Afterpay

Store Stock:
Henderson In Stock
Albany Low Stock - call to confirm

Click here for more info on how to install the CH340 driver.



The Mega 2560 is an update for the Arduino Mega,


The board is a microcontroller board based on the ATmega2560-16AU .It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 12 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.

Product Summary:

    CH340G replace the Atmega 8U2/16U2
    CH340G Driver Download link :
    Microcontroller:ATmega2560
    Clock Speed:12 MHz
    EEPROM:4 KB
    SRAM:8 KB
    Flash Memory:256 KB of which 8 KB used by bootloader
    Operating Voltage:5V
    Input Voltage (limits):6-20V
    Input Voltage (recommended):7-12V
    Analog Input Pins:16
    Digital I/O Pins:54 (of which 14 provide PWM output)
    DC Current for 3.3V Pin:50 mA
    DC Current per I/O Pin:40 mA
    CH340G Driver Download link :

Package Include:

    1 x ATmega2560-16AU CH340G Board
    1 x USB Cable

CH340 driver download here: http://www.wch.cn/downloads.php?name=pro&proid=65
