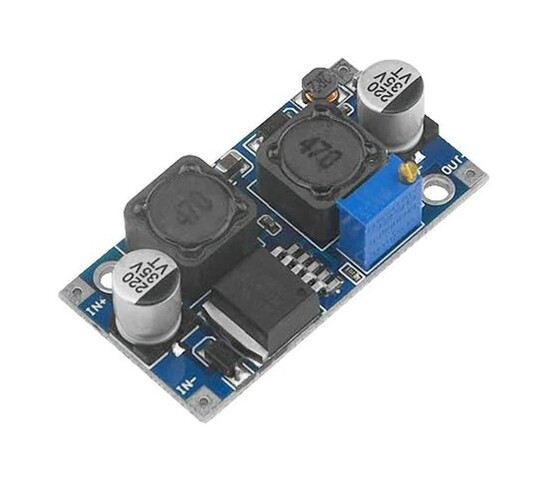

DC to DC Step Up Step Down Converter - Buck Boost

Boost Buck DC-DC Adjustable Step Up Down Converter XL6009 Module Solar Voltage

DESCRIPTION

·       Auto start voltage will be pulled down to 7V less or smaller engine at high speed when the voltage up to 15V or higher.

·       For 12V electrical work hard at work, this automatic buck module solves this problem, regardless of the input voltage is 5V or 12V or 32V, and the output can be stabilized at 12V.

·       Wide input voltage 5V ~ 32V;

·       Wide Output Voltage 1.25V ~ 35V (With automatic buck, scope of work, any voltage inputs can be arbitrarily regulated voltage output)

·       Built- 4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)

·       High switching frequency of 400KHz, the ripple is smaller and smaller . (LM2577 frequency only 50KHz)

·       Model Specification：DSN6000AUD Automatic Buck module

·       Module Properties: Non- isolated boost (BOOST)

·       Rectification: Non- Synchronous Rectification

·       Input Range：3.8V ~ 32V

·       Output Range：1.25V ~ 35V

·       Input Current：3A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current. )

·       Conversion efficiency：< 94% (greater the pressure, the lower the efficiency)

·       Switching frequency：400KHz

·       Output Ripple：50mV (the higher the voltage, the greater the current, the greater the ripple)

·       Load Regulation：± 0.5%

·       Voltage Regulation：± 0.5%

·       Operating Temperature：-40 °C~ +85 °C

·       Dimensions：48mm x 25mm x 14mm (L x W x H)

Application

·       Car regulator, solar photovoltaic, wind power and other applications of voltage instability

SHORT DESCRIPTION

The buck–boost converter is a type of DC-to-DC converter that has an output voltage magnitude that is either greater than or less than the input voltage magnitude. It is equivalent to a flyback converter using a single inductor instead of a transformer.
