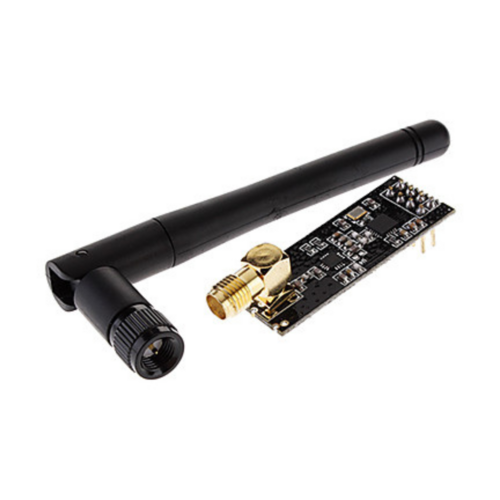

2.4G NRF24L01 + PA + LNA Wireless Communication Module
For Arduino
Product Code: MOD0720
High Power upto 1100 metres operation
NRF24L01P + PA + LNA wireless module operates in Free license 2.4G ISM band, you can do point to point application and can also be composed of star network. The Data transmission chip NRF24L01+, and match with the department's professional design, Add the the chip of power PA and LNA, RF switch, band pass filter composed of a professional full two-way RF power amplifier, making the effective communication distance has been greatly expanded. Small size: 45.54mm x 16.46mm, easy to embed in any space-constrained products, customers can use the SPI port of Arduino or any other MCU to control NRF24L01P + PA + LNA, Wireless module to complete long distance wireless data transmission system design.
Features
It uses 2.4G global open ISM band, with license free.
Transmit power is greater than +20 dbm.Support six-channel data reception. 2Mbit/s speed makes high-quality VoIP possible Low
Operating voltage: 2.7 to 3.6V
Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping.
Software programming is fully compatible with NRF24L01 modules.Size: 37.4mm * 16.6mm
Specification
Operating Frequency: 2400MHz ~ 2524MHz
Modulation: GMSK
Transmit power: more than +20 dbm, 50O
Receiver sensitivity:-95dbm
Operating voltage: 2.7V ~ 3.6V
Max Emission current: 115mA
Max Receive current: 45mA
Operating temperature: -45 degrees to +85 degrees
Storage temperature: -45 degrees to +125 degrees
Gain Of PA: 20 dB
Gain Of LNA: 10 dB
