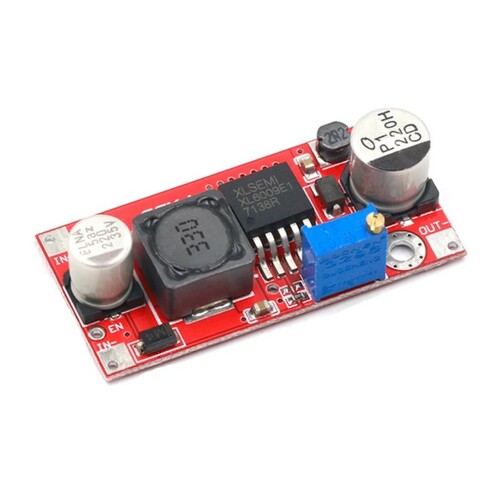

Step-up Power Module DC-DC Boost Converter
XL6009
Product Code: MOD0485
$5.50
Pay it in 4 payments of $1.38 with
XL6009 DC-DC adjustable power supply boost module has higher performance than the old LM2577
introduction
1. Brand new original XLSEMI chips.
2. Working frequency up to 400Khz, and LC filter circuit, the output ripple is very low.
3. Imported TDK inductor reduces heat and interference to.
4. Input and output three MLCC multilayer ceramic capacitors, anti-interference stability.
5. The PCB is made of kb grade A plate material, paperboard and garbage board.
6. Built-in MOSFET, say goodbye to LM2577 built-in triode, can achieve 94% rate.
7. An enabling port is added to control whether the boost circuit works.
15W power module with enabling port
Module parameters
Module nature: non-isolated booster module (BOOST)
Input voltage: 5-32V
Output voltage:
Output range: 5V~35V
Output current: 2. (MAX) no-load 18mA (5V input, 8V output, no-load less than 18mA. The higher the voltage, the greater the no-load current.)
Input current: 4A (MAX)
Output power: natural cooling 15W, with fins 25W (MAX) actual power
Output power=input voltage * 4A * conversion efficiency
Output ripple: input 12V output 24 0 Ripple 30MV 20M bandwidth
Working temperature: industrial grade (- 40 ℃ to+85 ℃) (if the ambient temperature is more than 40 ℃, please reduce the power to use, or strengthen the heat dissipation)
Temperature rise under full load: 45 ℃
Working frequency: 400khz
No-load current: 5V to 12V 15mA, 8.4V to 12V 7mA, 12V to 24V 9mA, 12V to 36V 18mA, 24V to 48V 9mA, 24V to 36V 6mA.
Load adjustment rate: ± 0.5%
Voltage regulation rate: ± 0.5%
Dynamic response speed: 5% 200uS
Enable control port: Yes, high level 1.4V-VIN (ON), low level 0-0.8V (OFF), default high level
Short circuit protection: none (please add fuse or protection circuit at the input)
Input reverse connection protection: None, please cooperate with our reverse connection protection board or connect diodes in series at the input.
Installation method: can be fixed with screws (fixing hole 3mm), 2 fixing holes
Wiring mode: welding. After adding pins, it can be directly welded on
