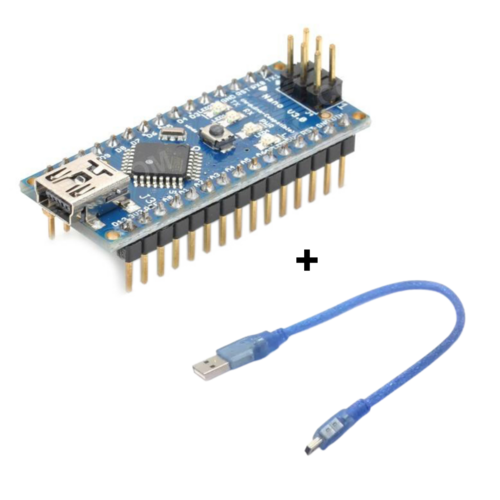

Arduino Nano V3.0 ATmega328P

Item Description

Nano is an ultra-small Simple I/O platform base with open source code. Compared with the previous USB version Arduino Diecimila, Arduino Nano has a large advantage in size.Arduino can be used to develop electronic appliances which run independently and the interactive effects.
Can also be used to develop interactive work  which connect to a computer and work with same Flash, Processing, Max/Msp, PD, VVVV software in cooperation.

Features:

12 Digital input / output ports: D2 ~ D13
8 analog inputs ports: A0 ~ A7
1 pairs of TTL level serial transceiver ports RX / TX
6 PWM ports: D3, D5, D6, D9, D10, D11
Using Atmel Atmega 328P-AU MCU
Support USB download and Power
Support for external 5V ~ 12V DC power supply
Support power supply by 9V battery
Support ISP download

Note: Bootloader is already installed in the module.

FTDI Chip (FT232RL) is on the backside of the module.
