2.4inch Touch Screen Kit, UNO R3, Expansion board for arduino
With usb cable
Product Code: MOD0587
Sorry, this product is not available to order at this time.
This is SainSmart 2.4 inch TFT LCD module with the TFT LCD shield kit For arduino enthusiasts.It includes one pcs of 2.4 inch TFT LCD display and a TFT LCD shield for arduino UNO(R3) and the Arduino UNO R3
2.4" TFT LCD Display is a LCD touch screen module. It has 40pins interface and SD card and Flash reader design. It is a powerful and mutilfunctional module for your project.The Screen include a controller ILI9325, it's a support 8/16bit data interface , easy to drive by many MCU like arduino familiesSTM32 ,AVR and 8051. It is designed with a touch controller in it . The touch IC is XPT2046 , and touch interface is included in the 40 pins breakout. It is the version of product only with touch screen and touch controller.
Wide viewing angle
ILI9325:240 RGB x 320 TFT Driver
Integrated Power, Gate and Source Driver With RAM
XPT2046-WIRE TOUCH,WIRE TOUCH, UP TO 125kHz CONVERSION RATE, SERIAL INTERFACE
Voltage type: 5v or 3v voltage input voltage???input is selectable. Because TFT can only work under 3.3 V voltage, so when the input voltage VIN is 5V, need through the 3.3 V voltage regulator IC step down to 3.3V , when the input voltage of 3.3 V, you need to use the zero resistance make J2 short , is equivalent to not through the voltage regulator IC for module and power supply directly.
Note: the factory TFT module, are the 5 v power supply. By default.
Carrying on board SD holder, its work to SPI mode.

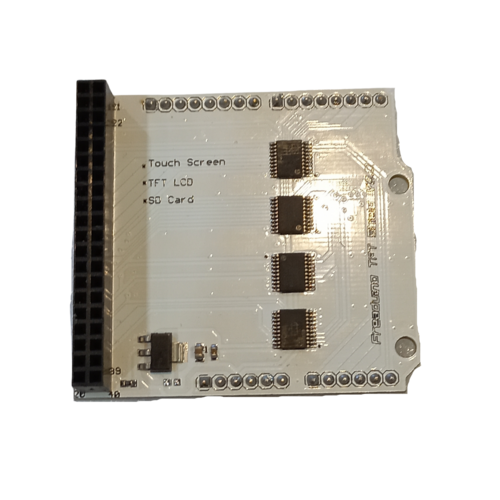

TFT LCD Extend Shield for arduino UNO(R3)
