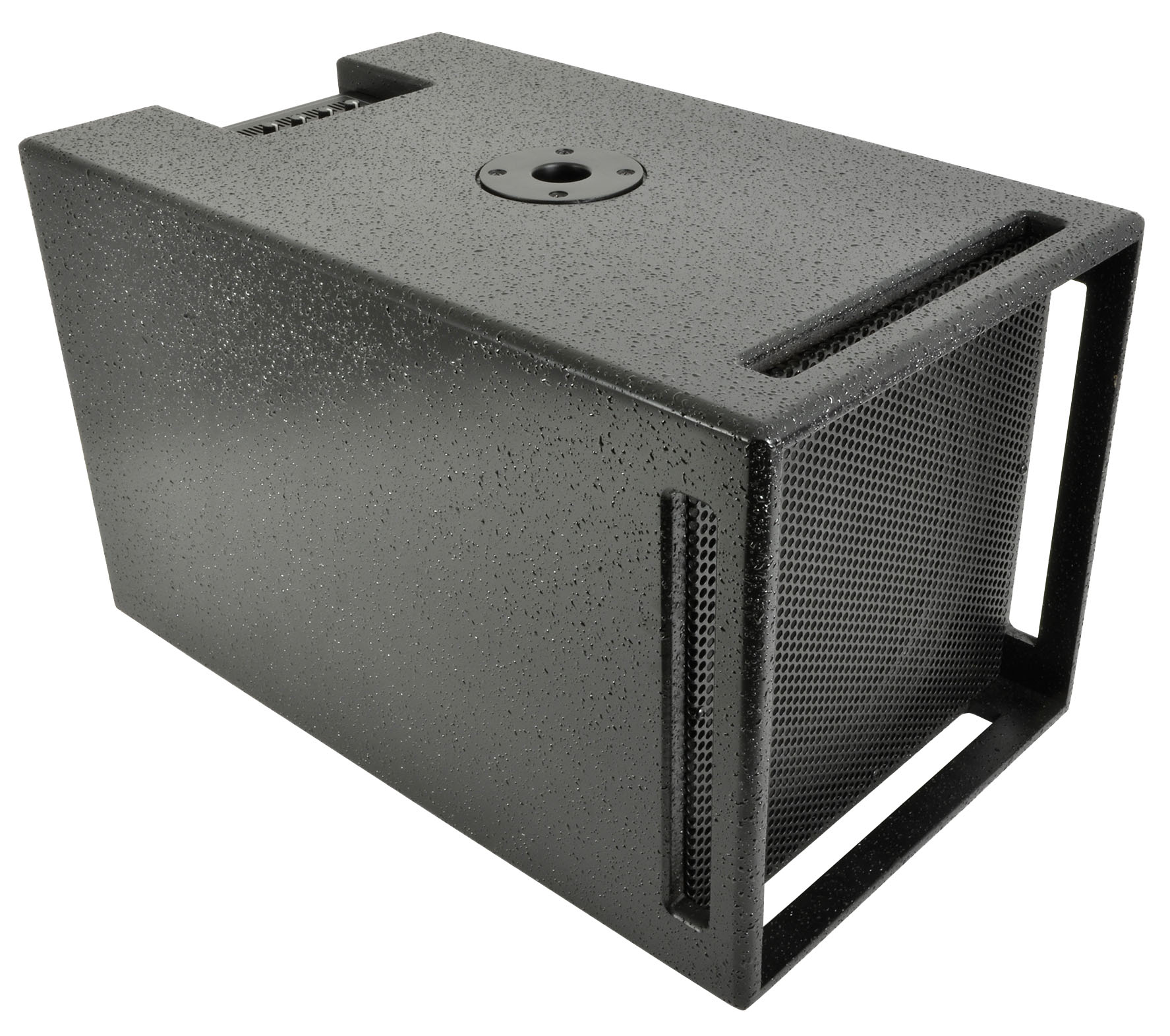

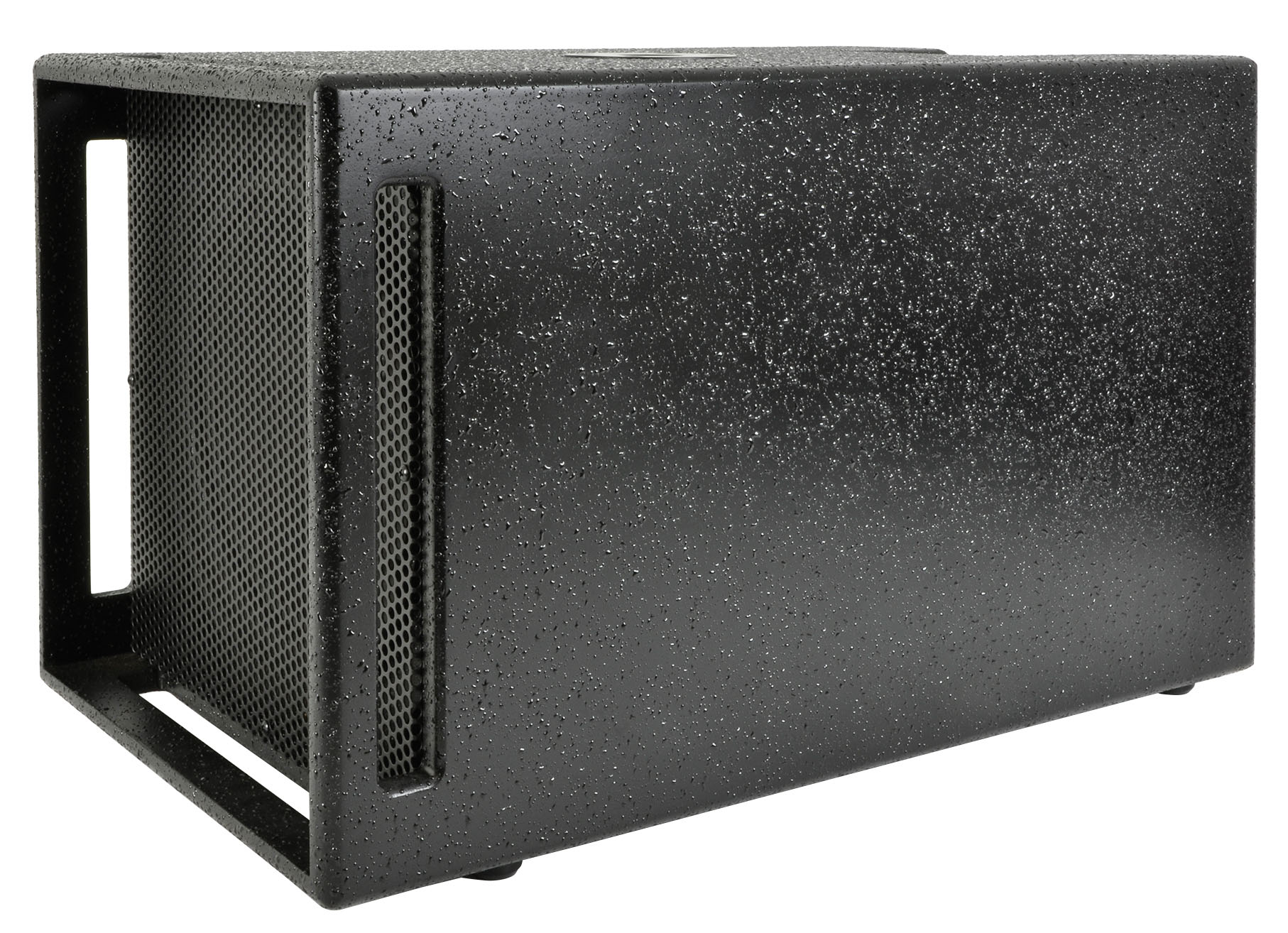

CXB ACTIVE SUBWOOFERS WITH SATELLITE OUTPUTS

Low profile sub cabinets with high power subdriver and built-in digital amplifier. Stereo inputs on combo connectors, parallel with RCA inputs, accept most line signal types. A filtered signal feeds bass to half of the integral amplifier, which in turn powers the sub driver, governed by a sub level control. The remaining amplifier capacity is fed to left and right speaker outputs, capable of powering 2 or 4 full range satellite speakers to make a complete bi-amped system. 2-band EQ and master volume controls help balance and tailor the output to the surroundings. Can be orientated forward facing for stage work or downward for minimal footprint in small to medium venues.

  • Low profile coated wood cabinet
  • Optimized low pass filter
  • L + R satellite speaker outputs
  • Dual orientation design

178.276UK

Model CXB-12A
Fuse rating T5AL 250V

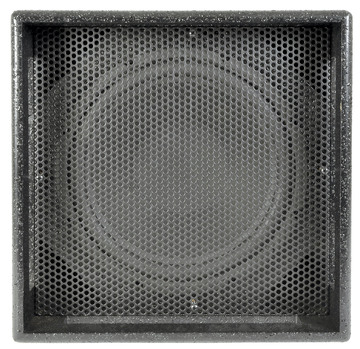

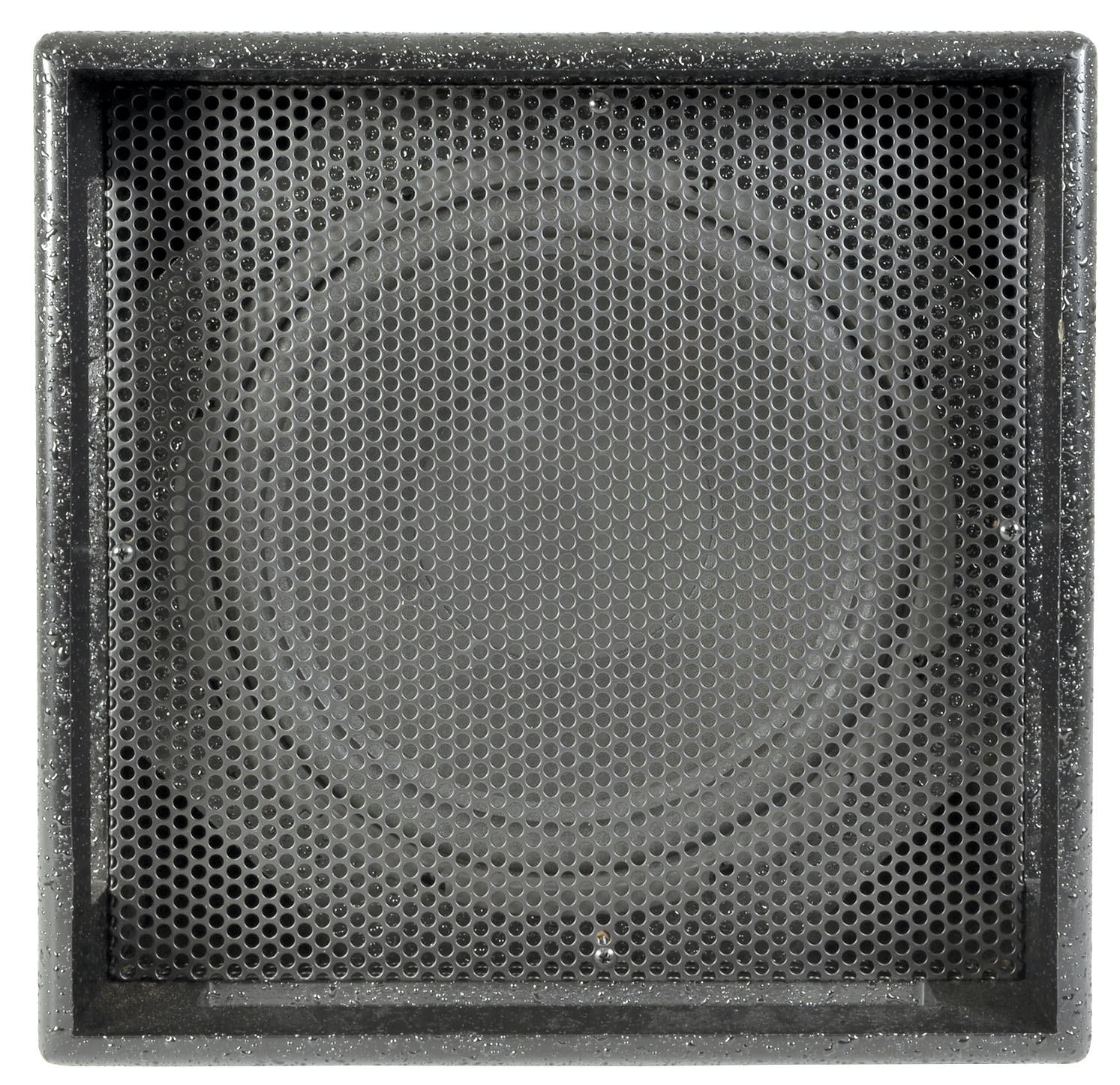

Sub driver 300mmØ (12")
Power : subwoofer 420Wrms
Power : satellites @ 8 Ohms
2 x 150Wrms
Power : satellites @ 4 Ohms 2 x 210Wrms
Bridge power @ 8 Ohms 420Wrms
Dimensions 400 x 400 x 660mm
Weight 21.8kg
Power supply  240Vac, 50Hz (IEC)

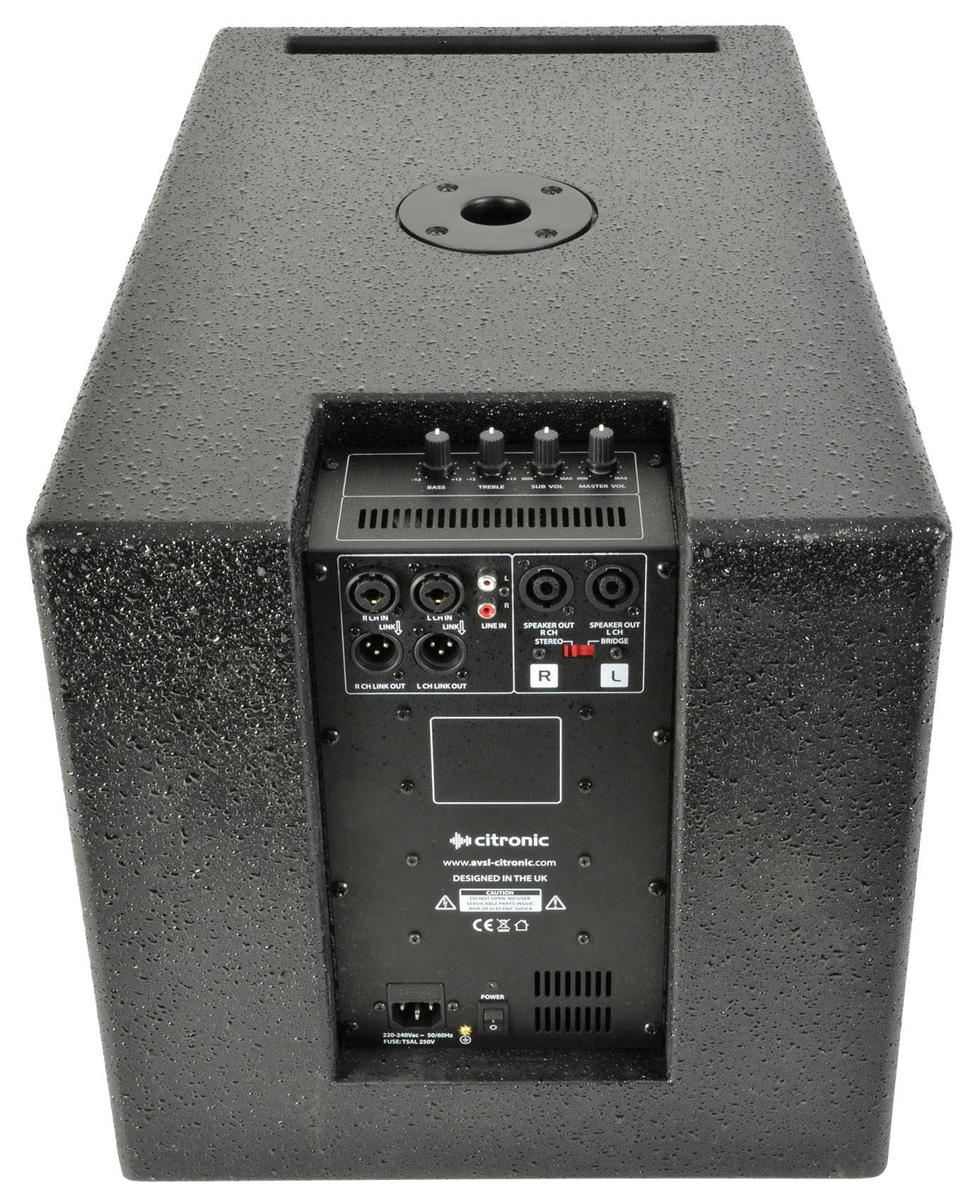

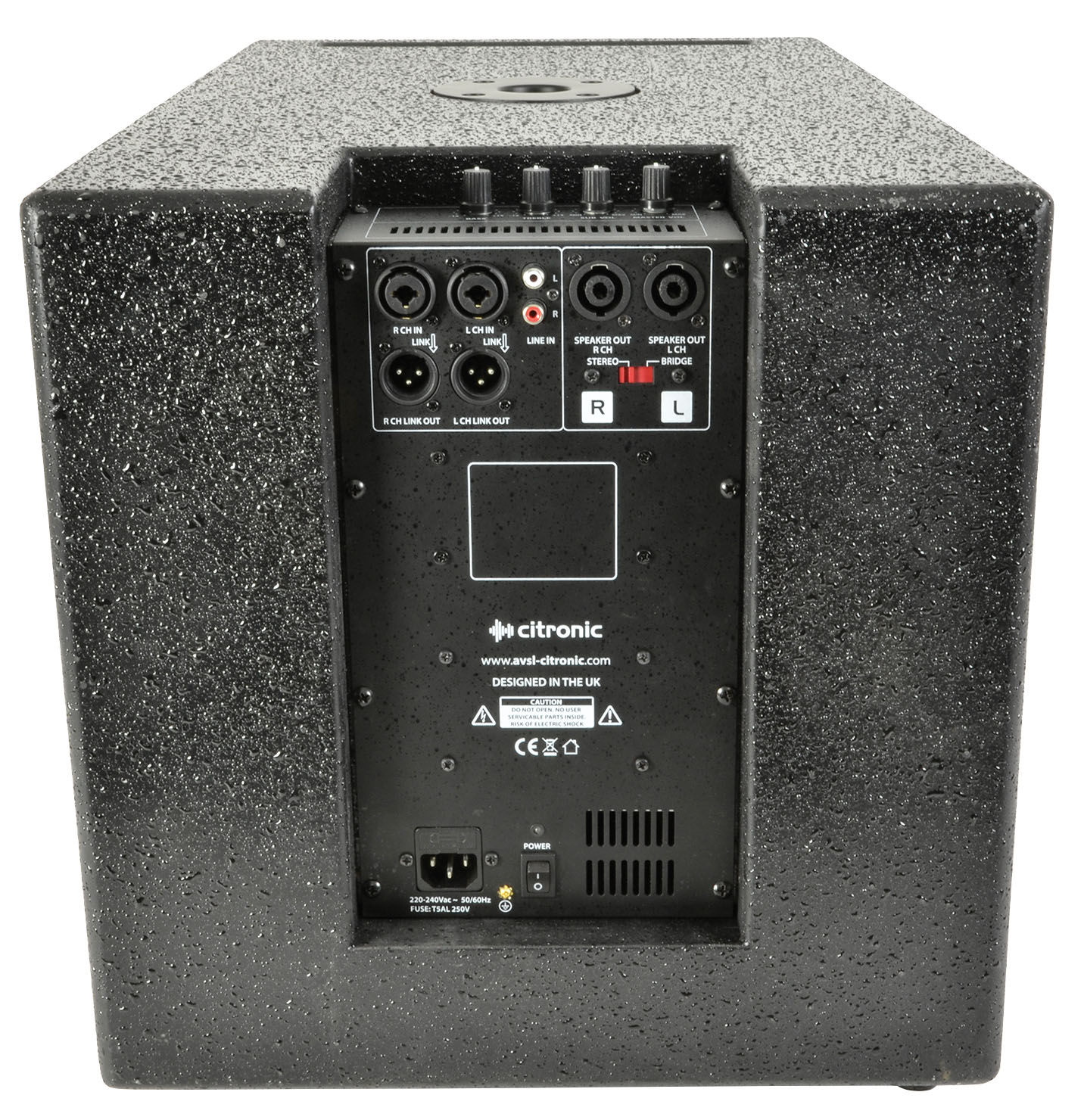

Inputs L+R Combo (Jack/XLR), L+R RCA
Outputs 2 x XLRM (line level signal)
Outputs : speaker L+R SPK connectors
Controls Bass, Treble, Sub Vol, Master
Crossover frequency
 150Hz



Info / Manual
