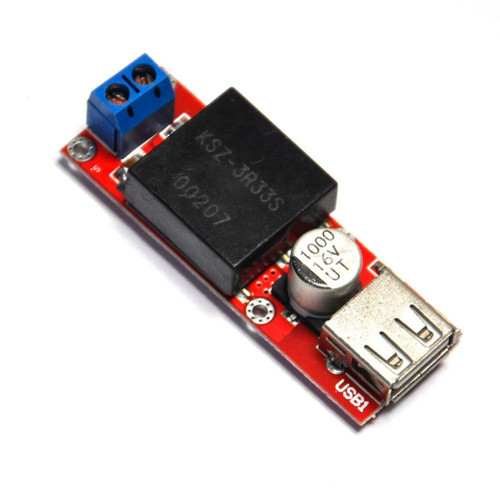

5V USB Output Converter DC 7V-24V To 5V 3A

Product Code: MOD0510

$6.50

Pay it in 4 payments of $1.62 with Afterpay

Buy 1+ $6.50 (incl. GST)
Buy 10+ $6.20 (incl. GST)
Buy 25+ $5.90 (incl. GST)

Specification

CHeck polarity, Reverse polarity will burn unit out

Modules nature:  non-isolated Buck
Rectification:   Non-synchronous rectification
Input voltage:   DC 7V- 24V
Output voltage:  DC 5V
Output current:  3A
Conversion efficiency:  96% (MAX)
Switching frequency:   340KHz
Output ripple:     30mV (max)
Load regulation:  ± 0.5%
Voltage regulation:  ± 2.5%
With Overcurrent Protection
Size:  60mm*21mm*14 mm
