Plastic Gear Pully Set - Robotic Model

75 Types

Product Code: MOT0085

$11.00

Pay it in 4 payments of $2.75 with Afterpay

Buy 1+ $11.00 (incl. GST)
Buy 10+ $10.45 (incl. GST)
Store Stock:
Henderson In Stock
Albany In Stock

Description

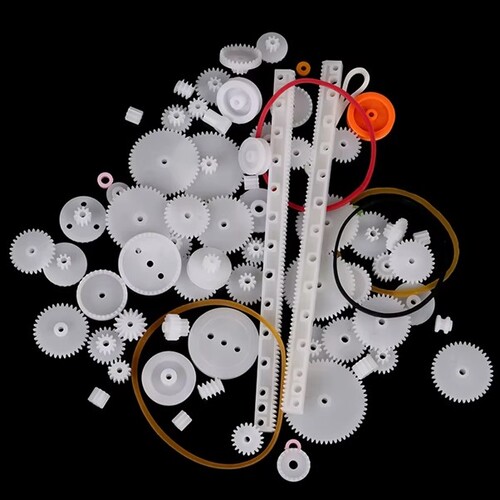

This package including gear, rack, pulley and belt drive a total of 75 parts, photo as the photo.

Many parts are our own design and production, other places can't buy accessories variety is complete, the experiment is scientific research,

popular science activities, personal diy models such as the necessary machinery accessories,

75 kinds of gear package, It can be used whether model, toys, cars, planes, remote control toys.

This package including gear, rack, pulley and belt drive a total of 75 parts

9 kind of Spindle gear

11 kind of Crown gear

12 kind of Single gear

19 kind of Double gear

7 kind of Belt pulley

2 kind of Worm gear

5 kind of Belt

2 PCS Connect rack

6 PCS Axle sleeve

1 PC Tee Axle Sleeve

1 PC Bevel gear



Product Description

The set may contain the following spec gears, not guaranteed


Material: ABS plastic
Spindle Straight Teeth: 9 Kinds (80.8A 81A 81.5A 82A 102A 122A 132A 142A 182A)
Crown Gear: 11 Kinds (C152A C203A C282A C282.5A C303A C322A C20082A C28082B C28102.5B C30102B C40102B)
Single Layer Gear: 12 Kinds
(202A 242A 242A 302A 303A 302.5A 322A 362A 402A 422A 482A 562A)
Double Layer Gear: 19 Kinds (16102B 18102A 20082B 20102B 22082A 22102B 24102B 24122B 26082B 28102B 30162A 32082B 34102B 38082B 40102B 46082A 48102B 50102A)
Pulley: 7 Kinds (122B 102B 62A 132A 16.82A 242AB)
: 2 Kinds ( W6x62A W6x82A )
Three-Way Shaft Sleeve: 1 Kind (3T-2A-2B)
Loose Teeth: 1 (S162A)
Motor Shaft Sleeve: 2A (2PCS) 2.5A (2PCS) 3A (2PCS)
Rubber Band: 5PCS Different Color of Rubber Band
Rack: 2PCS

The tooth sizes and specifications for the 75 Types Robotic Plastic Gear Pulley Set typically feature a standardized metric Module of 0.5 (M0.5), meaning all gears can seamlessly mesh with each other. [1, 2, 3, 4, 5] The entire kit contains a wide assortment of components ranging from 8 teeth to 56 teeth, with central shaft aperture diameters primarily sized at 2mm (tight or loose fit), alongside a few specialized pieces at 2.3mm and 3.17mm. [1, 2]   Understanding the Model Nomenclature The codes printed on the gears (e.g., 16102B or 81A) reveal their exact dimensions and hole sizes: [1, 2, 3]
  • The first numbers represent the tooth count.
  • The numbers following (in double-layer gears) show the tooth count of the second layer.
  • The suffix "A" means a tight fit on a 2mm shaft (actual hole is ~1.95mm).
  • The suffix "B" means a loose/rotational fit on a 2mm shaft (actual hole is ~2.05mm). [1, 2, 3, 4, 5]
    Detailed Breakdown of Gear Types and Sizes Here is the complete configuration of the 75-piece kit, classified by gear type and tooth size: [1]   1. Spindle Straight Gears (9 Types) These small spur gears attach directly to motor spindles: [1]
  • 8 Teeth: 80.8A, 81A, 81.5A, 82A
  • 10 Teeth: 102A
  • 12 Teeth: 122A
  • 13 Teeth: 132A
  • 14 Teeth: 142A
  • 18 Teeth: 182A [1, 2, 3]
  2. Crown Gears (11 Types) Designed for 90-degree right-angle power transmission: [1, 2]
  • Single Layer Crown: C152A (15 teeth), C203A, C282A, C282.5A, C303A, C322A
  • Double Layer / Special Crown: C20082A, C28082B, C28102.5B, C30102B, C40102B (up to 40 teeth) [1, 2]
  3. Single Layer Spur Gears (12 Types) [1, 2] Standard flat reduction cogs: [1]
  • Sizes Available: 202A (20 teeth), 242A, 282A, 302A, 303A, 302.5A, 322A, 362A, 402A, 422A, 482A, 562A (56 teeth max) [1, 2]
  4. Double Layer Reduction Gears (19 Types) Stacked gears designed to compound mechanical torque: [1]
  • Sizes Available: 16102B (16 teeth / 10 teeth), 18102A, 20082B, 20102B, 22082A, 22102B, 24102B, 24122B, 26082B, 28102B, 30162A, 30122B, 32082B, 34102B, 38082B, 40102B, 46082A, 48102B, 50102A (50 teeth / 10 teeth) [1, 2]
  5. Pulleys, Worms, & Hardware (24 Pieces) These accessories handle belt-driven or high-reduction linear mechanics:
  • Belt Pulleys (7 types): 122B, 102B, 62A, 132A, 16.82A, 242AB
  • Worm Gears (2 types): W6*62A, W6*82A
  • Belts / Rubber Bands: 5 distinct sizes
  • Linear Gear Racks: 2 interlocking pieces
  • Structural Hardware: 1 Bevel Gear (S162A), 1 T-Connector Sleeve, and 6 Axle Spacers/Sleeves. [1, 2, 3, 4]
  Pitch Diameter Calculation Tip Because these components use the M0.5 metric standard, you can easily determine the physical diameter of any gear using this formula:
\(\text{Pitch\ Diameter\ (mm)}=\text{Number\ of\ Teeth}\times 0.5\)
