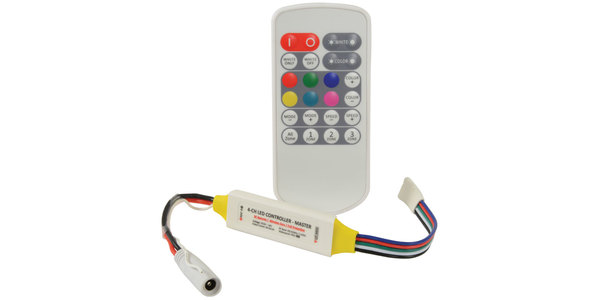

Master RGBW RF LED tape controller 433MHz

In-line RF controllers for 4-colour RGBW LED tape. Power input is connected to a DC5521 jack and controlled output is delivered to a 5-pin connector for connection to the tape. Available as a 433MHz master version with handheld remote control or a 2.4GHz slave version, which can be independently controlled via the master controller in 3 groups. Designed to enable full RGB colour mixing with separate control for white output to provide variable pastel shades.

  • Voltage6 - 24Vdc
  • Output current3 x 2A (RGB) + 1 x 3A (white)
  • PWM frequency512Hz
  • Operating temperature range-30°C to +80°C
  • Output connectionsBlue, red, green, white, V+
  • Range15m (max. remote and sync to slave)
  • ProtectionReverse/short circuit, overload, temperature
  • Dimensions : controller87 x 21 x 9mm
  • Full RGB colour mixing and white control
  • Handheld remote control included with master version
  • Static colour or preset chase options
  • Available in master and slave versions
  • Master/slave control up to 4 groups from a single handset
  • Protected against overload, overheating and incorrect wiring
  • IP63 weatherproof

Pdficon Info / Manual
