The PD6 series is a series of high-quality professional speaker cabinets in a strong and durable plywood housing. Finished with a black painted rubber coating to protect the cabinet during transport. The PD6 series are ideal for rental and touring use and deliver enough output for large venues and events. They are an extremely cost-effective solution for professional applications.

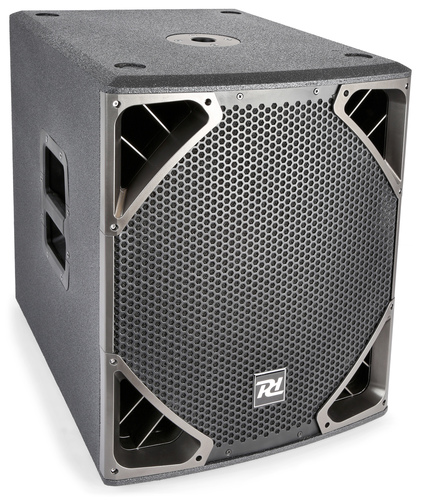

This 15" powered subwoofer has a music power of 500W and produces a sound pressure of 128dB. The internal crossover ensures that the highs are offered to the satellite speaker. The subwoofer is equipped with a loop trough output to connect a second subwoofer or amplifier as well as a high pass output for direct connection of satellite speakers. The high pass output has a built-in crossover which is adjustable between 50 and 150Hz.



  • 500W Active subwoofer 15"
  • Efficient class-D amplifier
  • Plywood housing with strong rubber coating
  • XLR Balanced line input
  • Loop through for connection to second amplifier
  • High Pass output for connection to active satellite speakers
  • Phase control (0 - 180°)
  • Crossover 50-150Hz adjustable
SPECIFICATIONS
Peak power 1000W
Power max. 500W
Power rms Class-D 400W
Impedance 8 Ohm
Frequency response 50Hz -300Hz
Sensitivity 101dB
SPL max 128dB
Dimensions 555 x 440 x 528mm
Weight 25.2kg

Info / Manual
