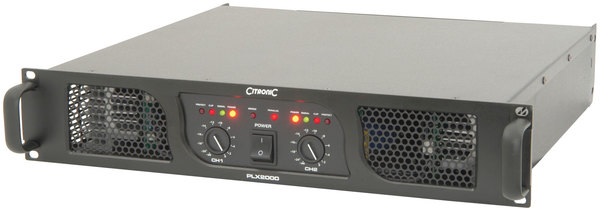

PLX2000 Power Amplifier - 2 x 700W RMS
Product Code: 172.214
$899.00
Pay it in 4 payments of $224.75 with
PLX2000 power amplifier, 2 x 700W @ 4 Ohms
19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via 6.3mm jack or XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.
- Bridge mode for high power mono operation
- Output stable down to 2 Ohms
- Removable handles for low profile install
- Switchable clip limiter
172.214
Power rms @ 2 Ohms 2 x 1000W
Power rms @ 4 Ohms 2 x 700W
Power rms @ 8 Ohms 2 x 400W
Power rms bridge @ 4 Ohms 1700W
Power rms bridge @ 8 Ohms 1250W
Weight 22.5kg
- Power supply230Vac, 50Hz (IEC)
- ControlsLevel channel 1, level channel 2, ground, mode, clip limiter
- Input impedance20k ohms
- Frequency response5Hz - 50kHz
- Total harmonic distortion0.05%
- Slew rate40V/us
- Damping factor>400
- ProtectionShort-circuit, overload, D.C. and thermal protect
- Dimensions482 x 453 x 88mm (2U)
