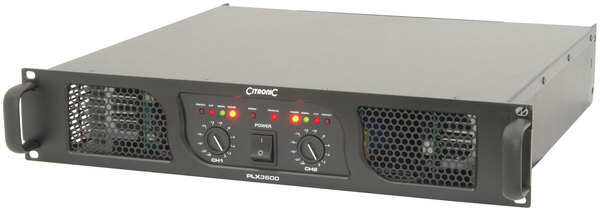

PLX3600 Professional Power Amplifier - 2 x 1350W RMS

PLX3600 power amplifier, 2 x 1350W @ 4 Ohms

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via 6.3mm jack or XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.

Specifications

Model  PLX3600

Power supply 230Vac, 50Hz (IEC)

Controls CH1 gain, CH2 gain, ground, compress, mode

Input impedance 20k ohms Frequency response 5Hz - 50kHz

Total harmonic distortion 0.05% S/N ratio >105dB

Protection Short-circuit, overload, D.C. and thermal protect

Output: RMS @ 2Ω  2 x 1800W

Output: RMS @ 4Ω   2 x 1350W

Output: RMS @ 8Ω  2 x 800W

Bridge power: RMS @ 4Ω  2900W

Bridge power: RMS @ 8Ω  2300W

Circuit protection Short-circuit, DC, Overload, Boot-strap short test

Dimensions 88 x 482 x 453mm Weight  26.0kg

• Bridge mode for high power mono operation
• Output stable down to 2 Ohms
• Removable handles for low profile install
• Switchable clip limiter
