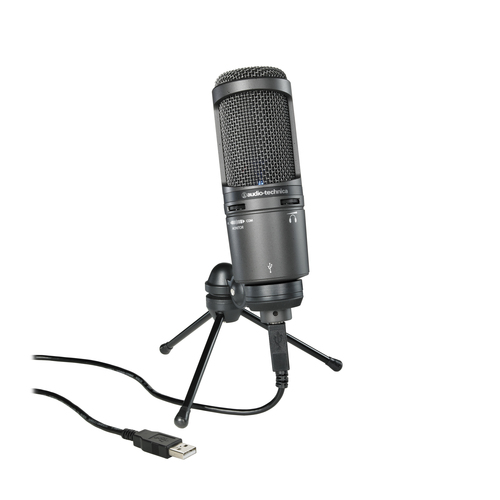

Audio Technica AT2020USB+ Cardioid Condenser USB Microphone
Product Code: AT2020USB+
Superceded by ATR2500X-USB
Equipped with a USB output, the AT2020USB+ is designed for digitally capturing music or any acoustic audio source using your favorite recording software. The microphone offers the critically acclaimed, award-winning sound of the AT2020, with studio-quality articulation and intelligibility perfect for singer/songwriters, podcasters, voice-over artists, field recorders, and home studio recorders.
The AT2020USB+ features a built-in headphone jack with volume control that allows you to directly monitor your microphone signal with no delay. It also offers mix control that blends microphone and pre-recorded audio. The microphone’s cardioid pickup pattern delivers excellent off-axis rejection, while its A/D converter with a 16-bit, 44.1/48 kHz sampling rate ensures extremely articulate sound reproduction.
Audio-Technica’s state-of-the-art design and manufacturing techniques ensure that the microphone complies with the company’s renowned consistency and reliability standards.
Condenser microphone with USB output for digital recording
High quality A/D converter with 16 bit, 44.1/48 kHz sampling rate for superb audio
Headphone jack with volume control allows you to monitor the microphone signal with no delay
Mix control allows you to blend your microphone signal and pre-recorded audio
High-output internal headphone amplifier delivers superior clarity and musical detail as well as more volume overall
Smooth, extended frequency response ideally suited for podcasting, home studio recording, field recording and voiceover use
Compatible with Windows 7, Vista, XP, 2000 and Mac OS X
Tripod desk stand with folding legs for secure and easily portable tabletop use
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | Cardioid |
| FREQUENCY RESPONSE | 20 – 20,000 Hz |
| POWER REQUIREMENTS | USB Power (5V DC) |
| BIT DEPTH | 16 bit |
| SAMPLE RATE | 44.1/48 kHz |
| VOLUME CONTROL | Mix control; Headphone volume control |
| WEIGHT | 386 g (13.6 oz) |
| DIMENSIONS | 162.0 mm (6.38") long, 52.0 mm (2.05") maximum body diameter |
| OUTPUT CONNECTOR | USB-type |
| HEADPHONE OUTPUT POWER | 130 mW (at 1 kHz, 10% T.H.D., 32 ohm load) |
| HEADPHONE JACK | 3.5 mm (1/8") TRS (stereo) |
| ACCESSORIES FURNISHED | Pivoting stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch; tripod desk stand; 10' (3.1 m) USB cable |
