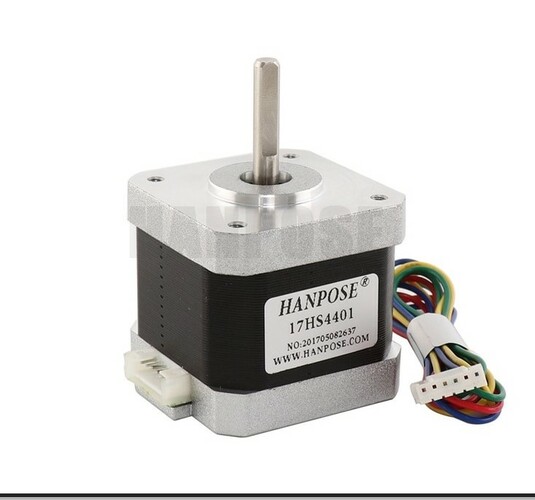

Stepper Motor 4-lead Nema17 42 motor

17HS4401

Product Code: MOT0405

$27.50

Pay it in 4 payments of $6.88 with Afterpay

Buy 1+ $27.50 (incl. GST)

Another powerful bipolar stepper motor. This is NEMA 17 bipolar with 1.8º (200 steps/revolution). Stepper motor is perfect for open loop motion control.

Features:

  • Bipolar Nema 17 Stepper Motor with high torque
  • Each phase current is 1.7A (at 12V) & phase reslstance 1.5ohms, and the holding moment is 40Ncm (56.2oz.in).
  • NEMA 17 bipolar 4-wire, with 1.8° step angle (200 steps/revolution)
  • Warning: It should be connected to a constant current or chopper driver as a stepper motor. If you connect the motor directly to a power supply, the motor is destroyed.
  • Connection:Black(A+), Green(A-), Red(B+), Blue(B-).
  • This is the most popular Nema 17 model. It with 1.8 deg. step angle (200 steps/revolution).


Electrical Specification:

  • Manufacturer Part Number: 17HS4401
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg.
  • Holding Torque: 40Ncm(56.2oz.in)
  • Rated Current/phase: 1.7A
  • Phase Resistance: 1.5Ohm±10%
  • Insulation Resistance: 100MΩ¸ Min, 500VDC
  • Insulation Strength: 500VAC for one minute


Physical Specification:

  • Frame Size: 42 x 42mm
  • Body Length: 40mm
  • Shaft Diameter: 5mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 280g
  • Temperature rise: 80deg Max(rated current, 2 phase on)
