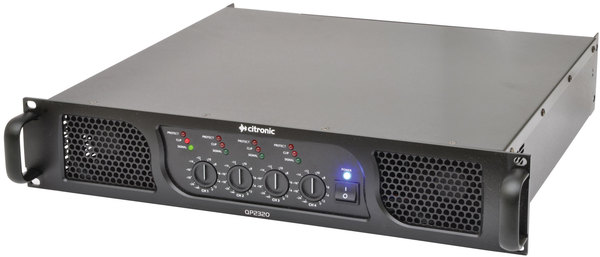

QP2320 Quad Power Amplifier - 4 x 580 Watt RMS

Product Code: 172.243

$949.00

Pay it in 4 payments of $237.25 with Afterpay

Buy 1+ $949.00 (incl. GST)

QP2320 quad power amp 4 x 580W

A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.

  • Fully balanced signal path
  • Stable down to 2 Ohms
  • 2U rack-mountable
Specification : Common
  • Power supply230Vac, 50Hz (IEC)
  • Input : line4 x XLRF balanced
  • Output : line4 x XLRM (parallel from inputs)
  • Input impedance20k Ohms
  • Frequency response5Hz - 50kHz
  • THD0.05%
  • Slew rate40V/usec
  • S/N ratio103dB
  • Controls4 x channel gain
  • Speaker : outputs4 x SPK connectors
  • Circuit protectionShort-circuit, DC, overload, soft-start
  • Dimensions483 x 439 x 88mm

Power rms @ 8 Ohms 4 x 300W
Power rms @ 4 Ohms 4 x 450W
Power rms @ 2 Ohms 4 x 580W
