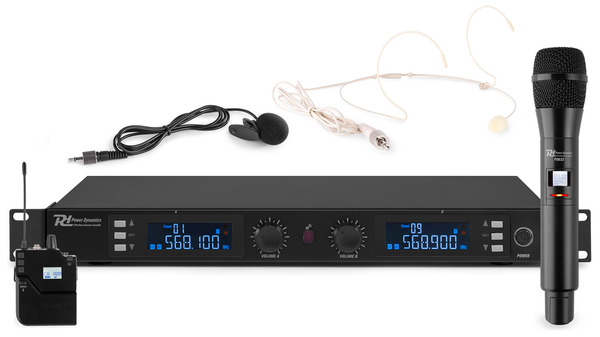

PD632C 2x 20-channel Wireless Microphone UHF digital with 1 Handheld microphone and 1 Bodypack microphone
The Power Dynamics PD632H is a powerful 2x 20-Channel UHF wireless system that delivers superior audio transmission, with clarity and definition. The receiver is equipped with a dynamic LCD display, volume control and balanced XLR output. Suitable for vocals, presentations, training and other hands-free activities.

  • 1x Handheld microphone and 1x bodypack with mute
  • 2x 20 Selectable UHF channels
  • IR data transmission for channel selection
  • 2x balanced XLR outputs and a single mix unbalanced 6.3mm output
  • CPU controlled
  • PLL oscillator
  • Transmitters with display showing the frequency and battery low indication
  • Equipped with dynamic LCD
  • Supplied in aluminium carrying case
  • Suitable for 19 "rack (supplied brackets)
Operating frequency 568 Mhz to 582 Mhz
RF output <10mW
Frequency response 60Hz - 18kHz
Frequency stability <15ppm
THD <1%
Signal to noise ratio >97dB
Battery 2x AA (handheld) 2x AA (bodypack)
Power supply 230VAC / 50Hz
Receiver:Dimensions 220 x 420 x 44mm
Microphone:Dimensions 250 x ø 51mm
Body pack: Dimensions 75 x 60 x 23mm
Receiver:Weight 1460gr
Microphone:Weight 400gr
Body pack: Weight 200gr

Pdficon Info / Manual

Bulk prices are available on all items, Please login to get bulk prices. Or call 09-8375020 for a price!
