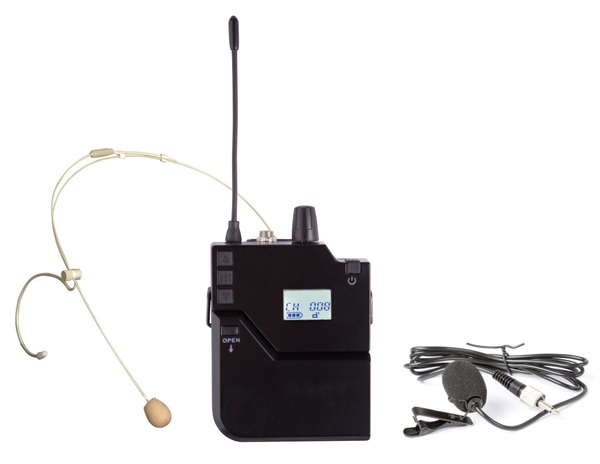

PD632BP Bodypack microphone for PD632 series
Bodypack transmitter for PD632 wireless UHF microphone systems. Equipped with IR learning system for channel selection. Ideal for handsfree applications, vocals, presentations etc. Including tie-clip and skin-colour headset.

  • 20 Selectable UHF channels
  • Bodypack with mute
  • IR data transmission for channel selection
  • Microphone connection using 3,5mm screwable jack
  • Transmitter with display showing the frequency and battery low indication
SPECIFICATIONS
Operating frequency 568 Mhz to 582 Mhz
RF output <10mW
Frequency response 60Hz - 18kHz
Frequency stability <15ppm
THD <1%
Signal to noise ratio >97dB
Battery 2x AA (bodypack)
Power supply
Dimensions 75 x 60 x 23mm
Weight 200gr

Pdficon Info / Manual
