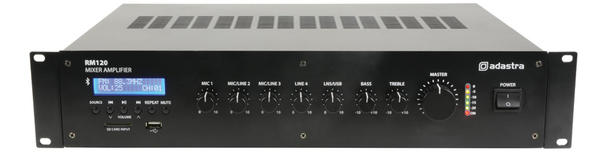

PA Mixer Amplifier 100V -5 Channel Input - Bluetooth- RM120

RM series 5-channel 100V mixer amplifier

A rack-mountable 5-channel mixer amplifier, tailored to commercial sound installations, that can either be used as a 100V line amplifier or a standard low-impedance amp. Versatile input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt FM radio tuner, front-mounted SD and USB ports, and Bluetooth connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1 and rear panel 24V contacts can mute all except mic input 1 when triggered.

2U 19" rack mountable (rack ears supplied)

XLR input with switchable +20V phantom power – ideal for condenser microphones and paging microphones with chimes

2 x mic/line inputs, 2 x RCA line inputs, and 1 x RCA line output

Switchable ‘voiceover’ feature

Inbuilt media player with SD, USB and Bluetooth inputs and integrated FM radio tuner

100V line or 4-16 ohm speaker output

24V emergency mute contacts

Option for mains or 24Vdc power

Editable Bluetooth ID for unique pairing

Specification : Common

Mains power 110/240Vac, 50/60Hz (IEC)

DC power 24Vdc (screw terminals)

Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line

Input sensitivity : mic 1 (balanced) -53dBV

Input impedance : mic 1 5k Ohms

Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)

Input impedance : inputs 2-5 1k Ohms

Line output RCA

Controls Mic1, mic/line2+3, line4+5, bass, treble, master volume

Equalizer : bass 100Hz ±10dB

Equalizer : treble 10kHz ±10dB

Rear panel switches Phantom, Vox, Mic/Line (2 + 3)

Phantom power +20V (mic 1 input)

Audio source USB/SD player, FM tuner and Bluetooth receiver

Emergency control 24V contacts - mute all except Mic.1 when triggered

Bluetooth version 2.1

THD <1.0%

953.214UK

Power : output120Wrms

Speaker : outputs 100V / 8 Ohms / COM terminals

Speaker switching N/A

Weight8.36kg

Dimensions 433 x 320 x 89mm
