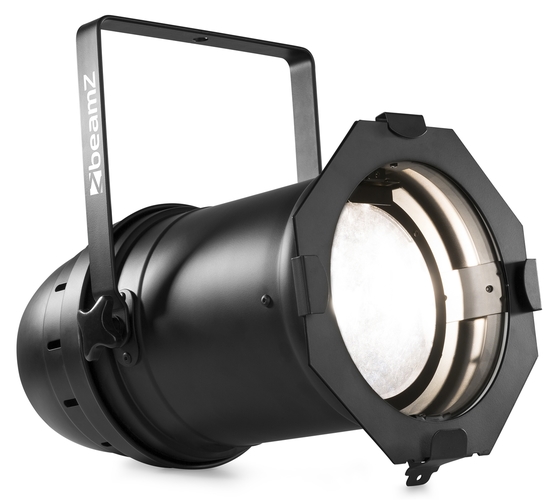

COB100W PAR light 100W 3K Warm White ZOOM


The COB100W is a bright LED PAR fixture provided with a powerful 100W warm white COB LED with a colour temperature of 3000K. The output is comparable to a traditional 1000W halogen beam Par. This PAR is equipped with 5 different beam angle options that may be changed by hand. Other features include electronic dimming (0- 100%), Strobe, control via 2 channels of DMX and Powerconnector in/out allows the fixture to be daisy chained. The fixture comes with a gel frame in which filters may be inserted.


  • 100W COB (Chip on Board) LED
  • Colour temperature 3000K Warm White
  • Manual beam angle: 9, 15, 20, 25, and 30°
  • Includes gel frame for diffusion filters (excluding filters)
  • 1 or 2 Channels DMX
  • Strobe effect (25Hz max)
  • Electronic Dimming: 0 - 100%
  • 4-button DMX menu display on rear panel
  • DMX in/output via 3-pin XLR
Lightsource Single colour LED
LED Colours Warm White
LED Power (W) 100W
Quantity of LEDs 1
Beam angle:min (degrees) 9
Beam angle:max (degrees)  30
Field angle:min (degrees)  17
Field angle:max (degrees) 46
Illuminance (lx) 177000
Flash rate per second 0 - 25Hz
DMX Channels 2
DMX Connector 3-pin XLR
Modes DMX
Power Plug Power-connector
Power consumption 0.705A
Power Supply 240VAC 50Hz
Dimensions (L x W x H) 260 x 220 x 490
Weight (kg) 3,35
Accessories Mounting bracket

Pdficon Info / Manual
