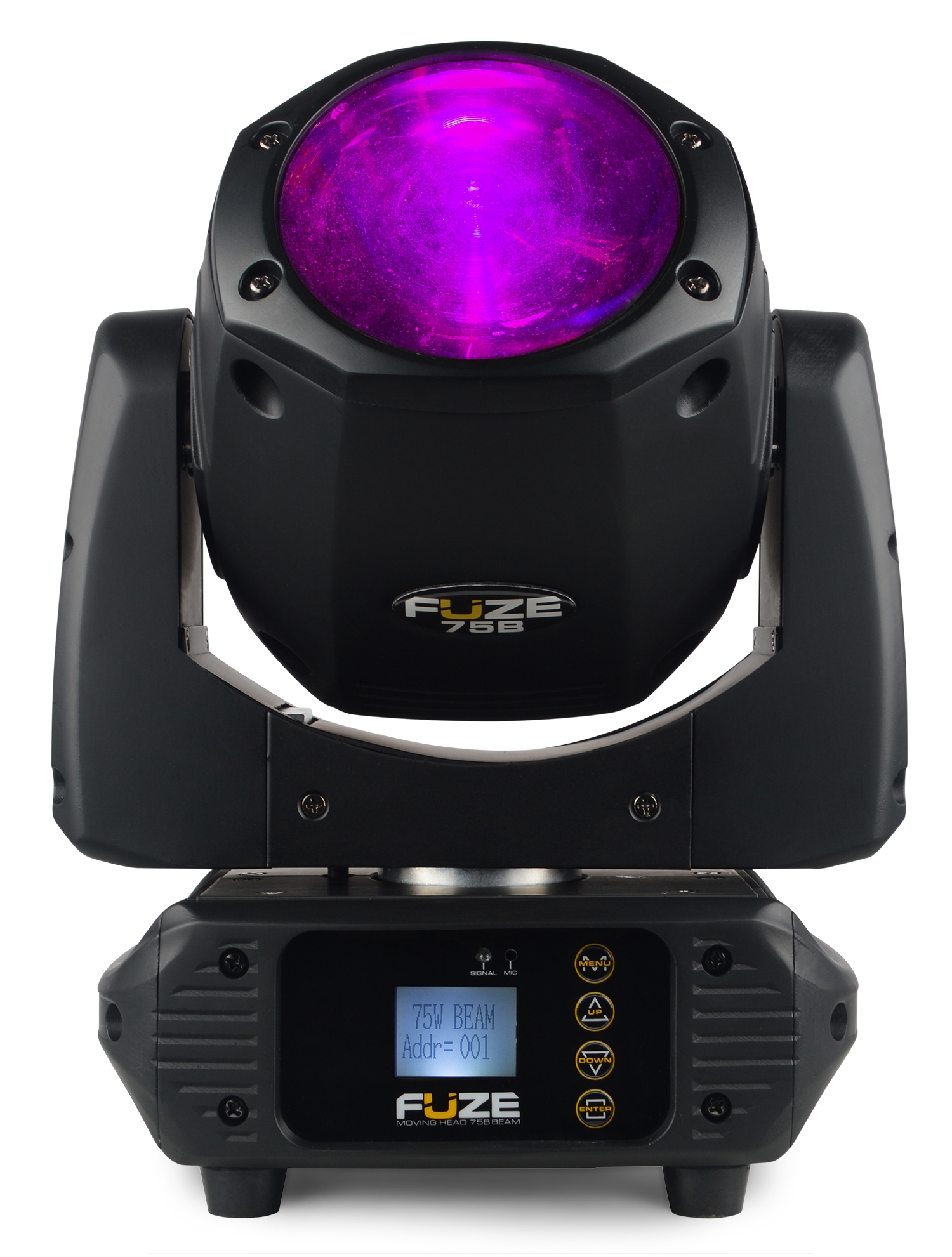

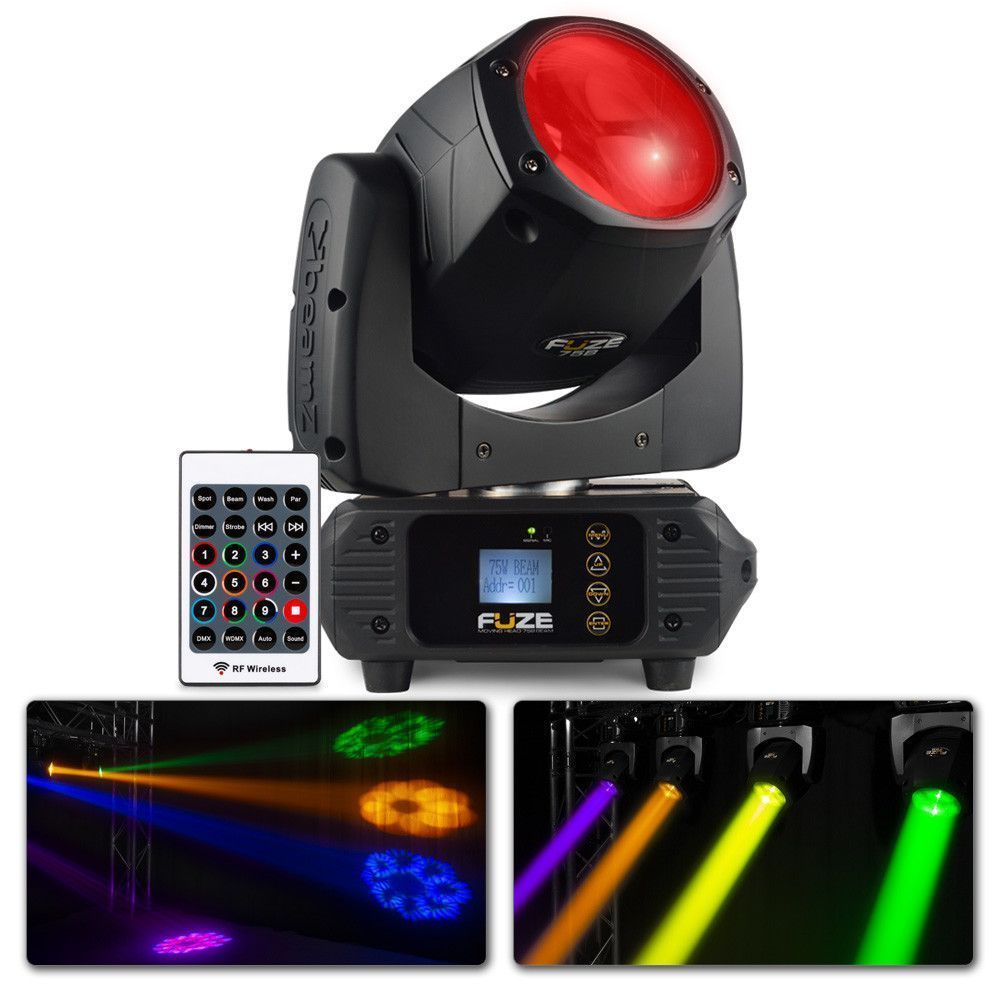

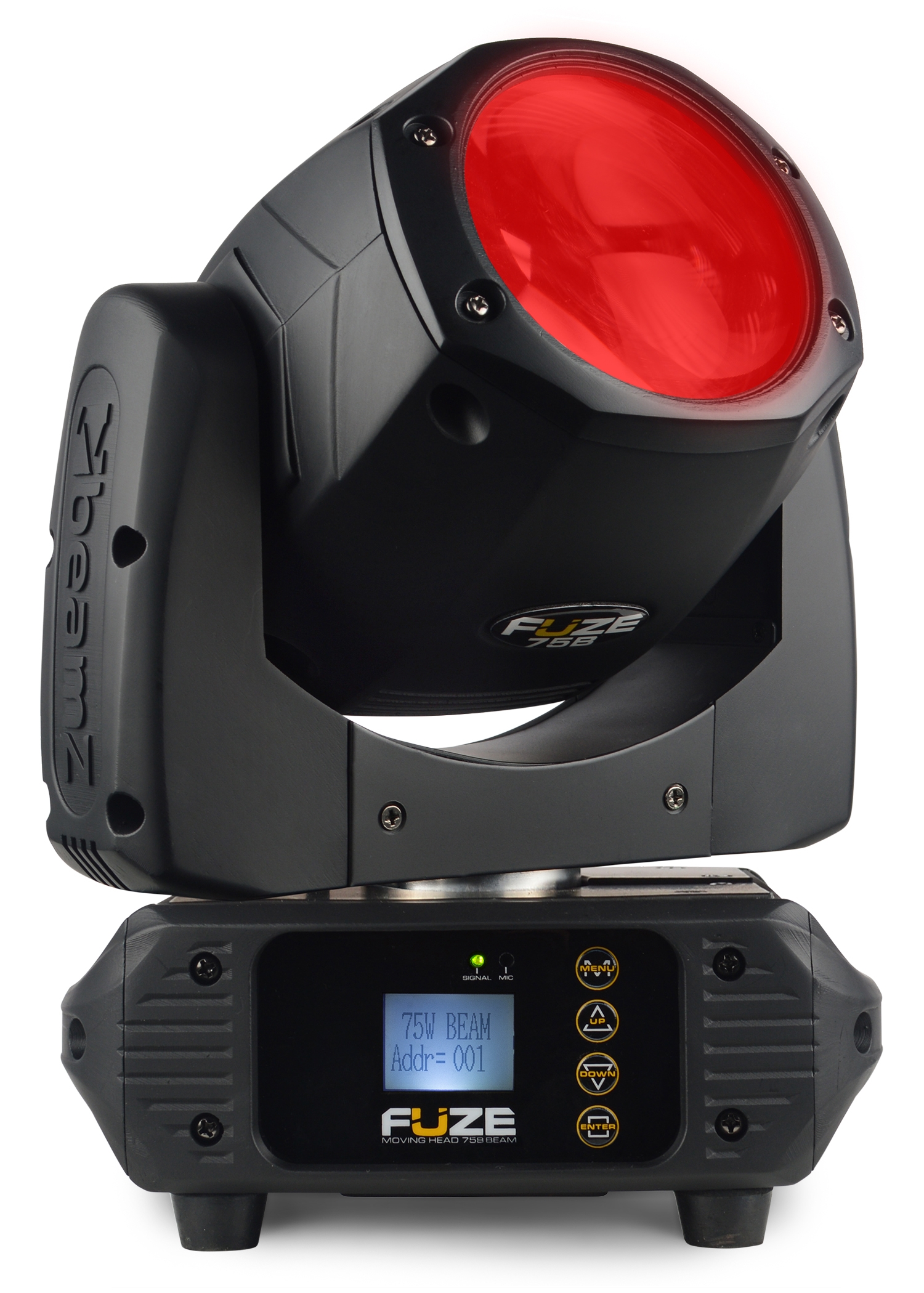

Fuze75B Beam 75W LED Moving Head

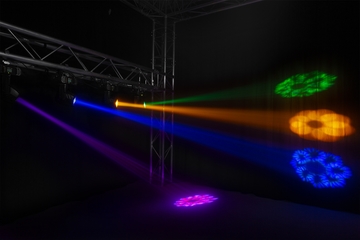

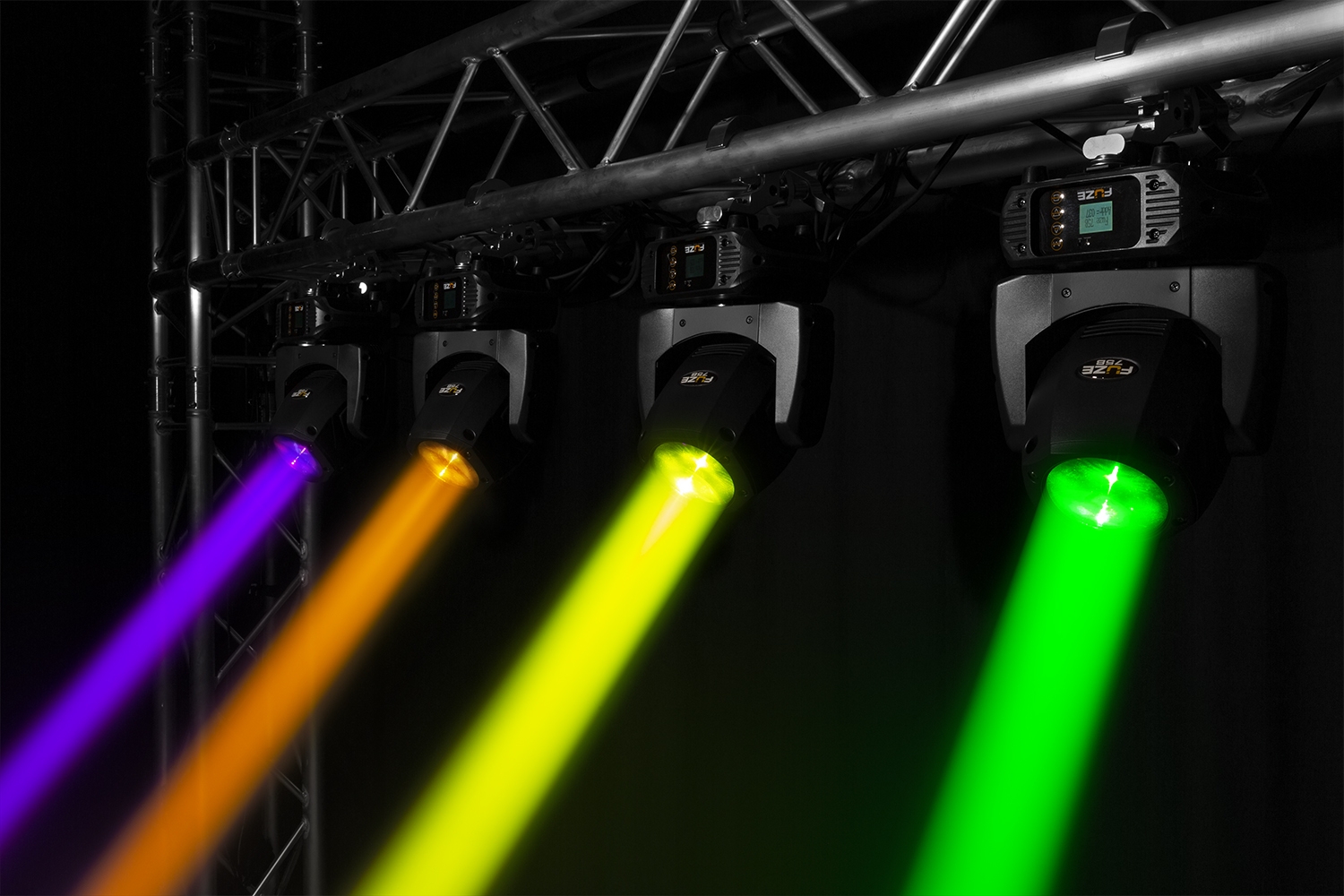

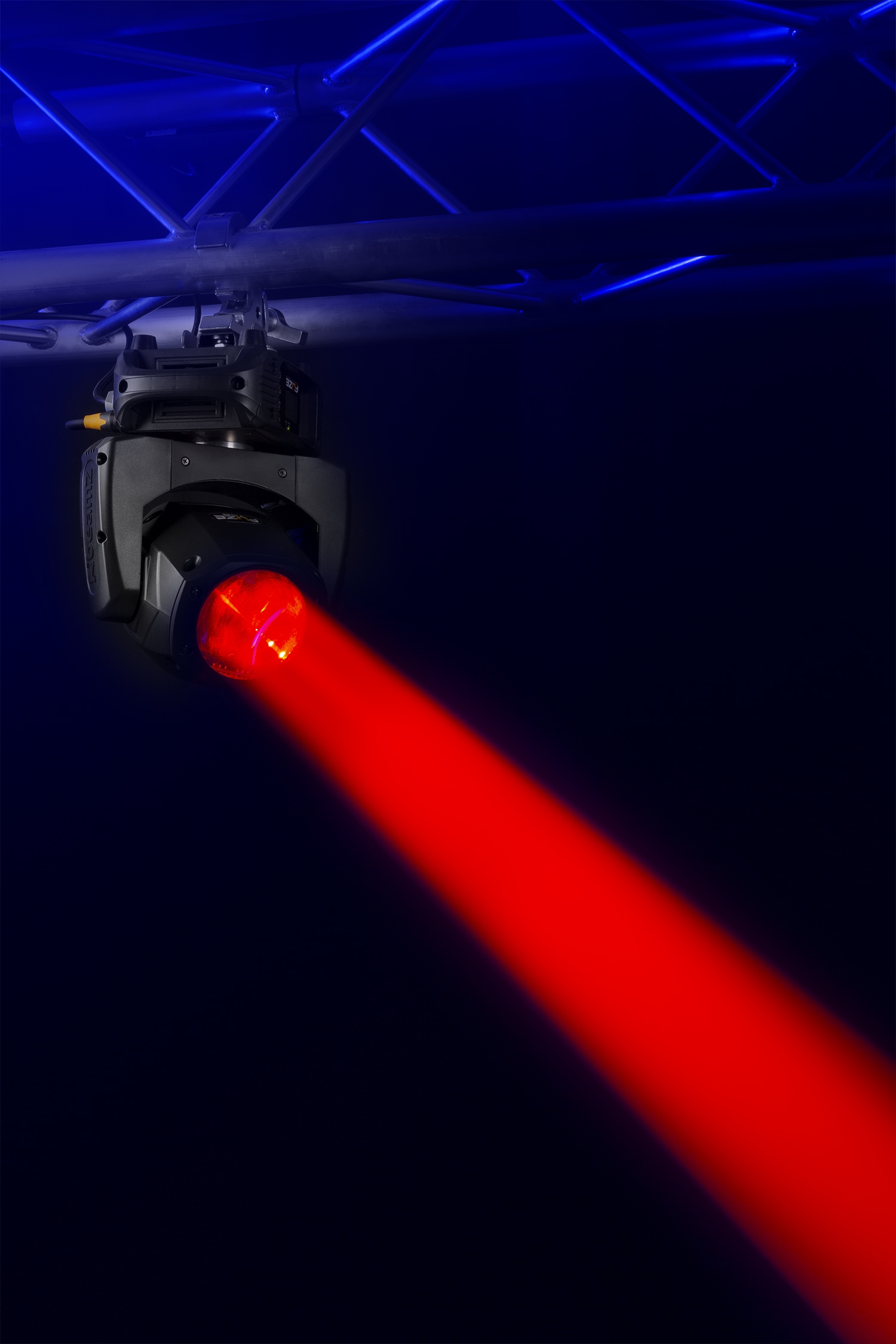

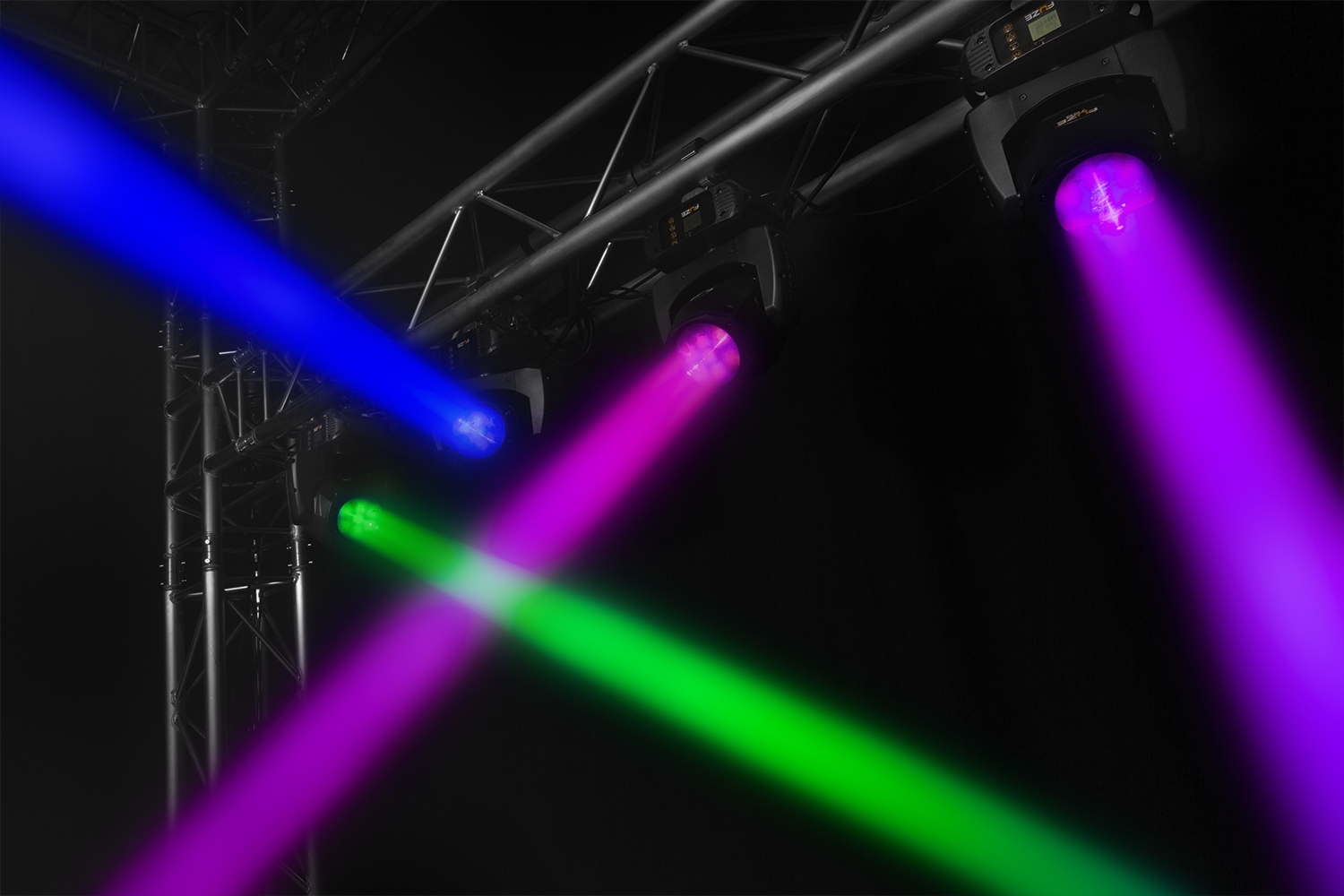

The Fuze75B Beam LED Moving Head is a lightweight, compact and ultra-fast moving fixture with an extremely sharp and narrow beam. The Fuze75B is equipped with a powerful 75W LED and features a frost filter which converts the tight beam to a wide wash for different applications. The 2 degree beam angle make this the ideal fixture to use for long range gobo projection and sharp beam figures. Operation via DMX, Auto mode with exiting built-in light shows, Sound Active Mode or linked in Master/Slave mode. Perfect for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical.





  • 75W High Intensity White LED
  • 10 or 12 DMX channels
  • DMX and Stand-alone mode
  • Master/slave synchronization
  • Sound activated with adjustable sensitivity
  • Auto mode
  • Beam angle 2°
  • Fresnel lens
  • Gobo Wheel: 17x metal gobos + open
  • Gobo shake function
  • 12 Colours + open
  • Rotatable 8 facet prism
  • 0-100% Electronic Dimmer
  • Pan and Tilt Ranges: 360°, 540°, 630° pan / 90°, 180°, 270° tilt movement
  • Strobe: 1-11Hz
  • Automatic pan/tilt correction
  • Reset function
  • Control panel with LCD display

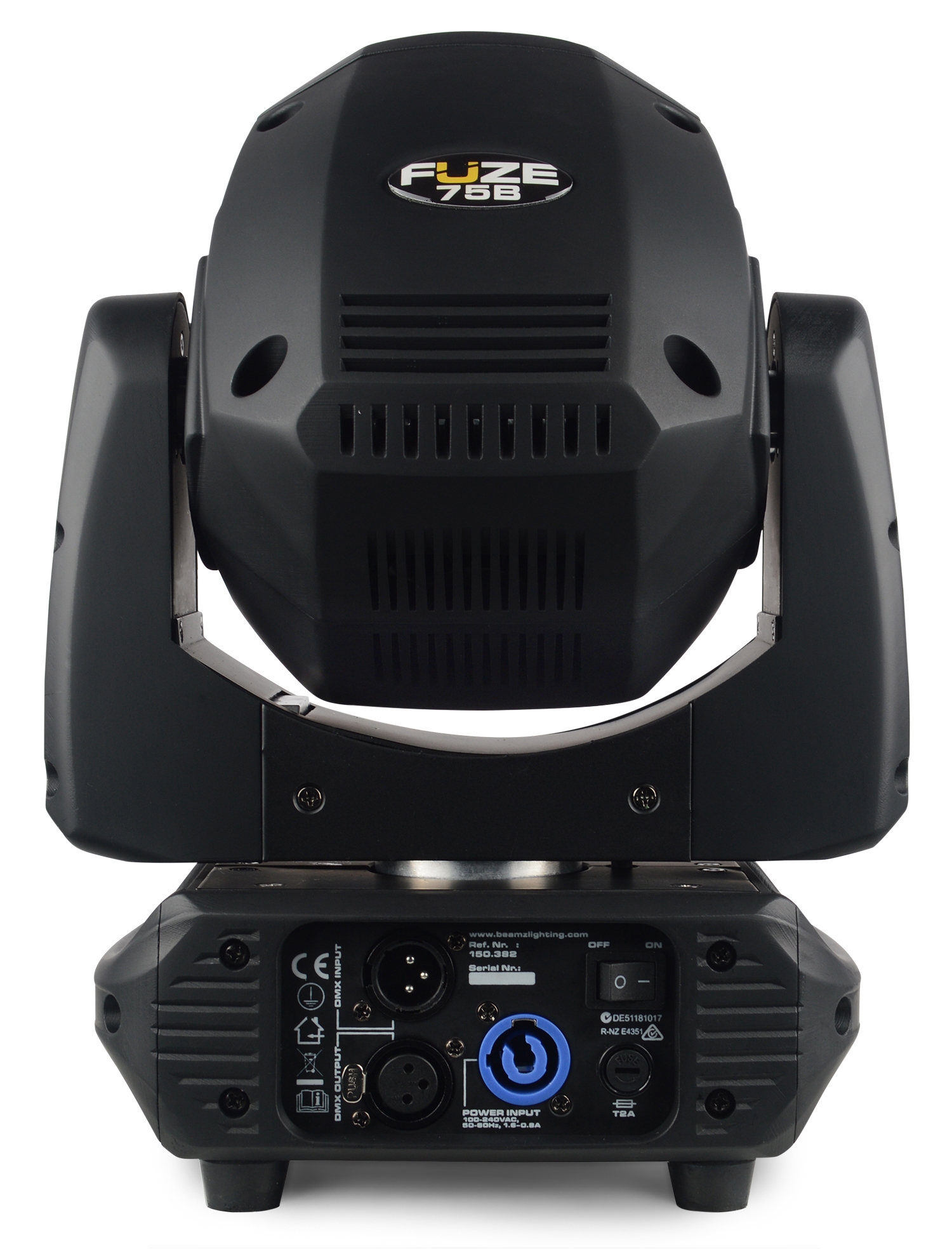

  • DMX in/output via 3-pin XLR
  • Powerconnector input

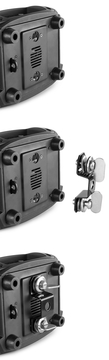

  • Quick lock omega clamp included
  • DMX cable included
  • Powerconnector cable and safety cord included

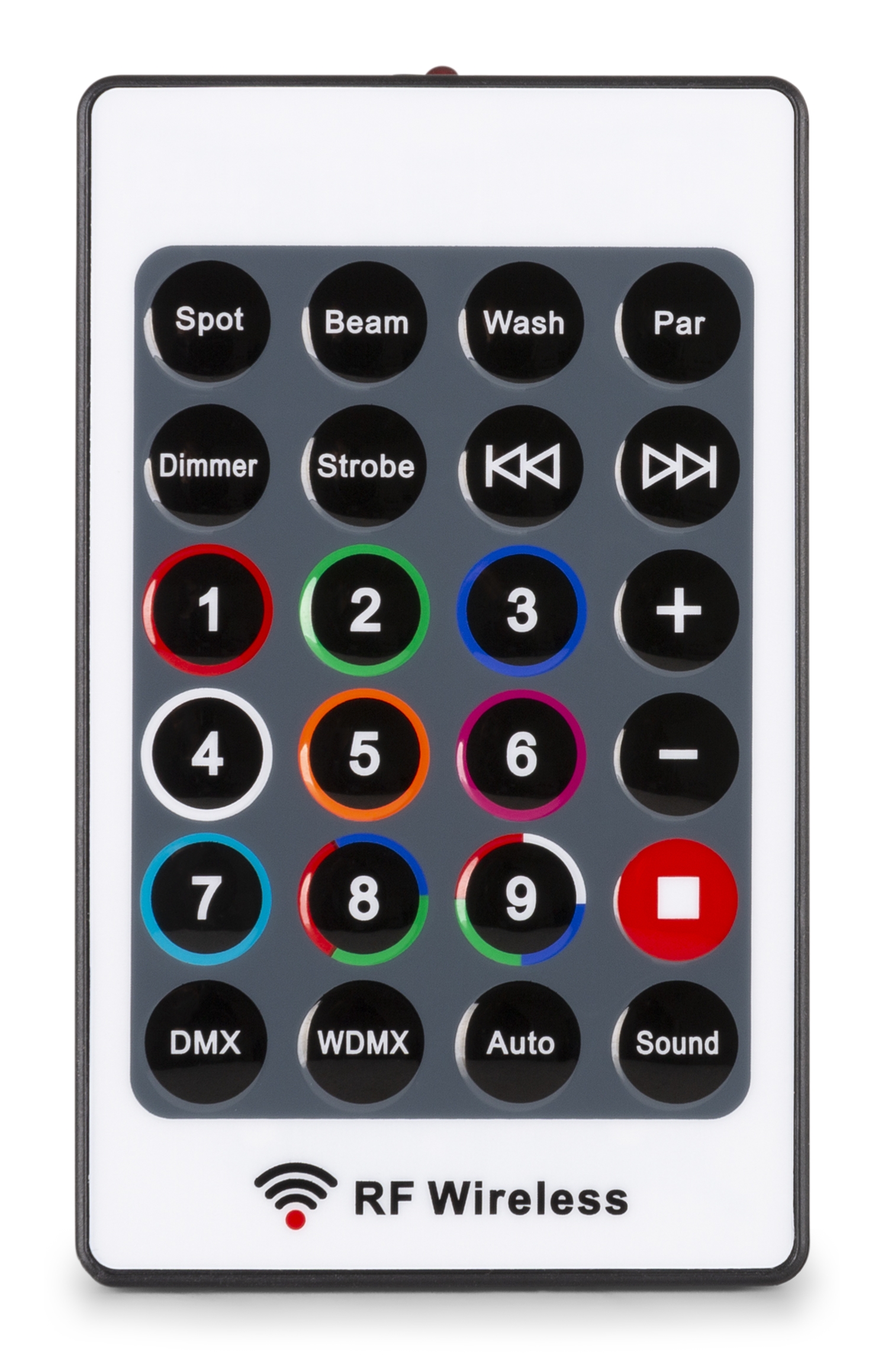

  • Included remote control
Lightsource Single colour LED
LED Colours White
LED Power (W) 75
Quantity of LEDs 1
Colour wheel 12 colours + open
Dispersion
Illuminance (lx) 190.000lx1m
Head movement:Pan 630
Head movement:Tilt 270
Static gobo: Quantity 17
Gobo Shake Yes
Prisma 1 8 Facet
Flash rate per second 1 - 11Hz
Modes Automatic programs, DMX, Master/Slave
Sound to Light mode Yes
DMX Channels 10, 12
DMX Connector 3-pin XLR
Display LCD
IP rating IP20
Cooling Temperature controlled fan
Power Plug Power-connector
Power consumption 1.6 - 0.8A
Power Supply 240VAC 50Hz
Dimensions (L x W x H) 245 x 230 x 290
Weight (kg) 5,20

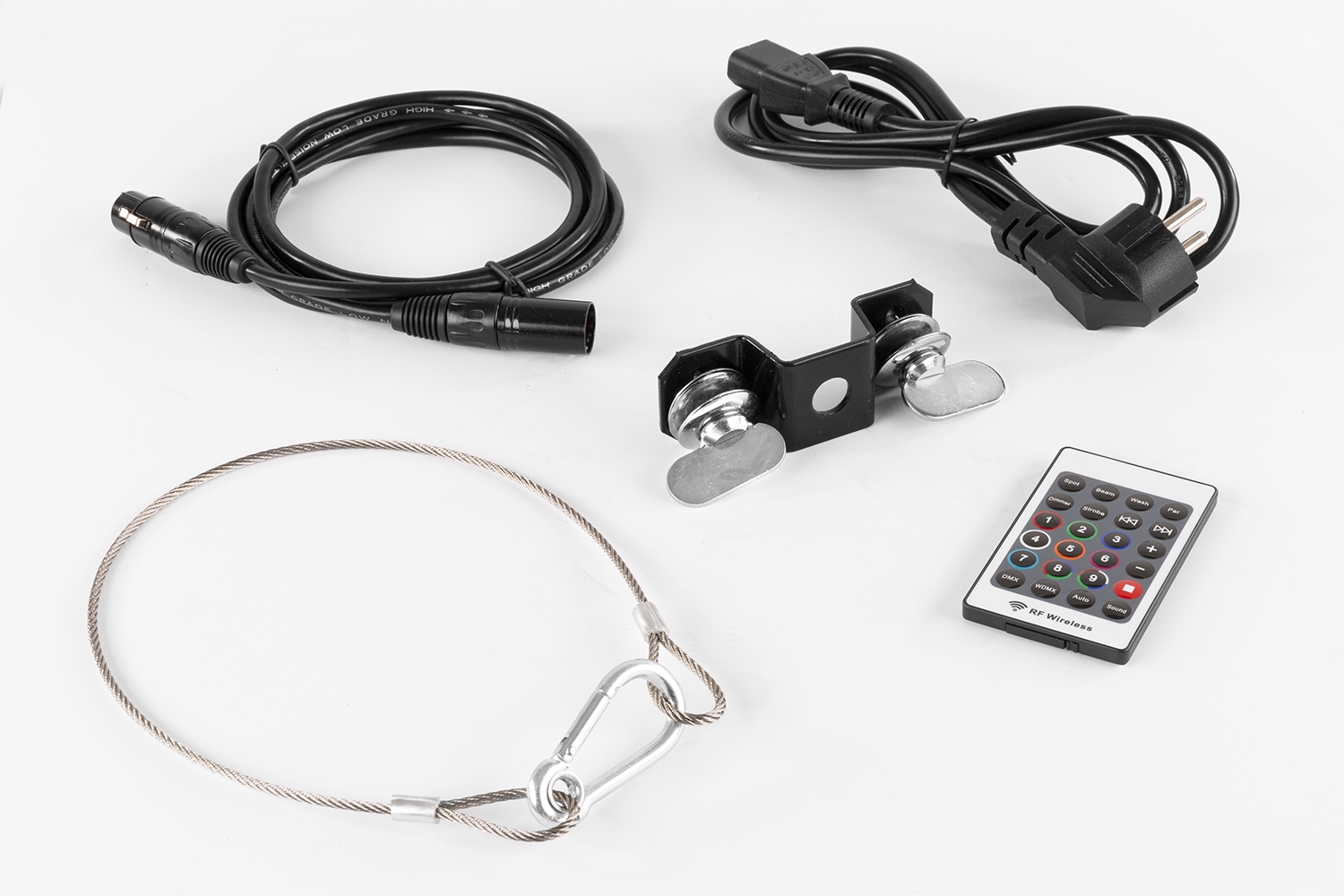

Accessories DMX Cable, Mounting bracket, Power Cable, Remote control, Safety cord
