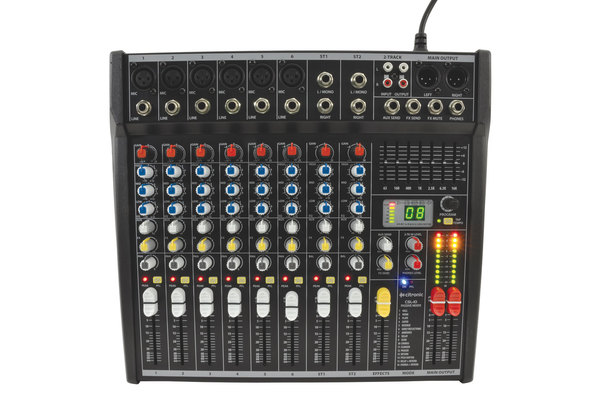

CSL-10 Mixing Console 10 input
Product Code: 170.853
CSL-10 Mixing Console 10 input
Compact mixing consoles with 6 balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
- 7-band global graphic EQ
- IEC mains powered
- Balanced main outputs
- 19" rack-mounting ears available: 170.846-7-8UK
- Power supply230Vac, 50Hz (IEC)
- Phantom power+48V (XLR inputs)
- Power consumption25W
- FuseT1AL
- Input level+24dBu
- Output level : line+26dBu
- Frequency response20Hz-30kHz (0.5dB)
- CMRR>74dB (mic 1kHz)
- THD +N<0.01% (channel to main out)
- Crosstalk>85dB (fader mute), >82dB (channel)
- Noise rms : 22Hz-22kHz-122dBu (EIN), -82dBu (mix)
- EQ: high12kHz ±15dB shelving
- EQ: mid2.5kHz ±15dB band pass
- EQ: low80Hz ±15dB shelving
- Input impedance : mic (balanced)2k Ohms
- Input impedance : line (balanced)10k Ohms
- Sensitivity : mic-60 to +14dBu
- Sensitivity : line-40 to +14dBu
- 2-track2 x RCA in & out (-2dBu)
- Effects16 program DSP (24-bit sigma-delta, 40kHz)
- Output impedance<75 Ohms
- Headphone output6.3mm jack, 30-600 Ohms
| 170.851 | 170.853 | 170.855 | |
|---|---|---|---|
| Barcode / EAN | 5015972196205 | 5015972196212 | 5015972196229 |
| Tariff code | 8519890000 | 8519890000 | 8519890000 |
| Country of Origin | CN | CN | CN |
| Package type | Box Label | Box Label | Box Label |
| Package dimensions | 325 x 150 x 380mm | 380 x 150 x 480mm | 380 x 150 x 480mm |
| Package weight | 6.96kg | 4.00kg | 4.96kg |
| Package quantity | 1 unit | 1 unit | 1 unit |
| Carton dimensions | 390 x 385 x 415mm | 390 x 310 x 495mm | 415 x 390 x 545mm |
| Carton weight | 9.37kg | 8.00kg | 12.77kg |
| Carton quantity | 2 packages | 2 packages | 2 packages |
| Pack paper weight | 0.57kg | 0.71kg | 0.87kg |
| Pack plastic weight | 0.15kg | 0.16kg | 0.17kg |
