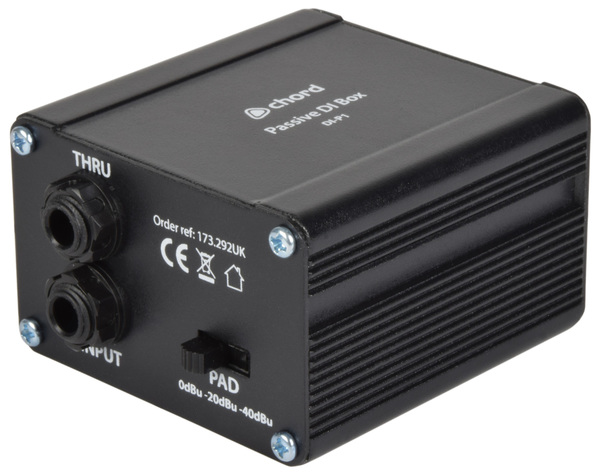

Passive Direct Injection DI Box

Product Code: 173.292

This product is coming soon, and is due to arrive on or near July 15, 2026

Passive Direct Injection Box

Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector for ground lift with or without filter.



Ground float option for ground lift with RF/mains filter

Ground lift option isolates signal ground without filter

3 pad settings for level matching



Specification

Input 6.3mm jack (unbalanced)

Outputs XLRM (balanced), 6.3mm jack through (unbalanced)

Input impedance >100k Ohms

Output impedance 600 Ohms

Controls 0/-20/-40dBu pad & Ground-Float-Lift switch

Dimensions 86 x 70 x 45mm

Weight 234g
