PDI202 Stereo Passive DI Box
Product Code: 172.764

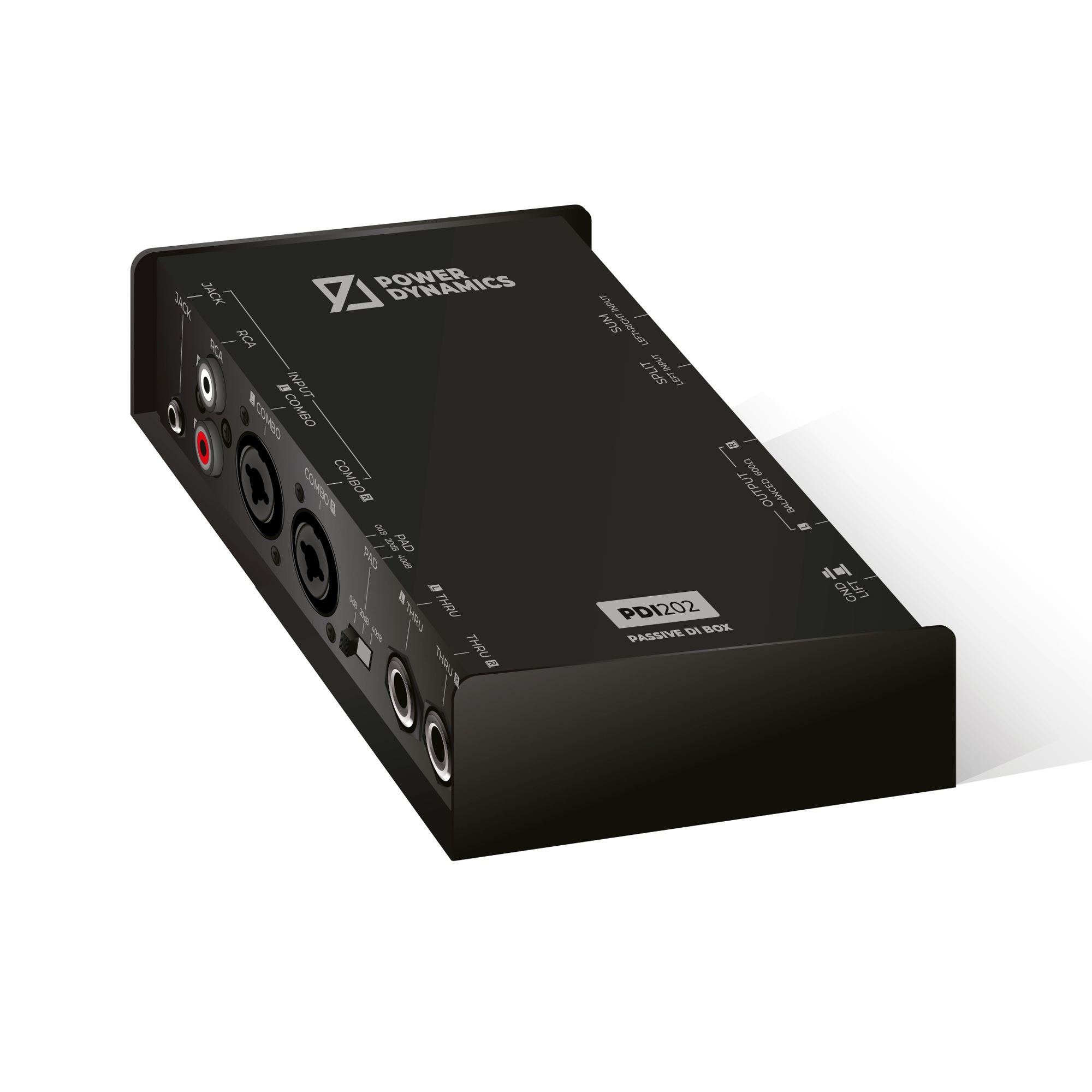

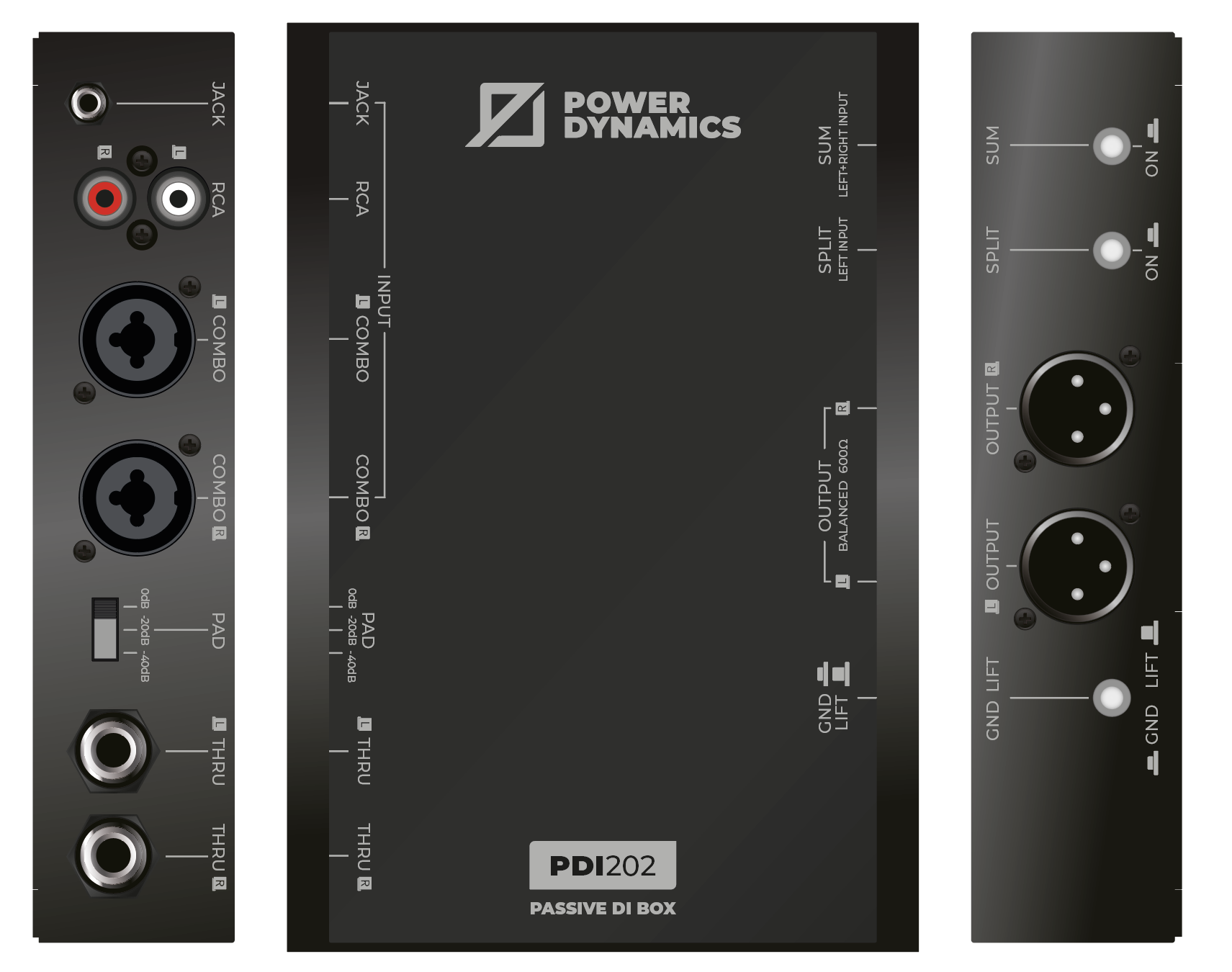

The PDI202 Stereo Passive Direct Injection Box is a portable stereo DI box that delivers superior connectivity and audio performance. Housed in a robust metal case, the PDI202 features balanced XLR inputs and outputs, as well as combo XLR/Jack and 6.3mm Jack linked inputs and outputs for flexible connection options. A built-in ground-lift switch helps to reduce noise caused by ground loops, while the sum switch routes both inputs to both outputs and the split switch routes the left input to both outputs for added signal-routing flexibility.
- Stereo Direct Injection Box
- 2-Channel
- Two balanced XLR outputs
- Two XLR Combo inputs
- Two 6.3 mm jack loop-through outputs
- RCA and 3.5mm outputs
- 3-Way attenuator switch (0/-20/-40 dB)
- Ground lift switch
- Sum switch routes both inputs to both outputs
- Split switch routes left input to both outputs
- Instrument loop-through output
- Metal housing
Specifications
| Product colour Black | |
| Frequency response 15Hz - 30.000Hz | |
| Input connections 3.5mm Jack, RCA, XLR (3-pin) | |
| Output connections 6.3mm Jack, XLR (3-pin) | |
| Dimensions (L x W x H) 136 x 40 x 120mm | |
| Weight (kg) 0,56 |
