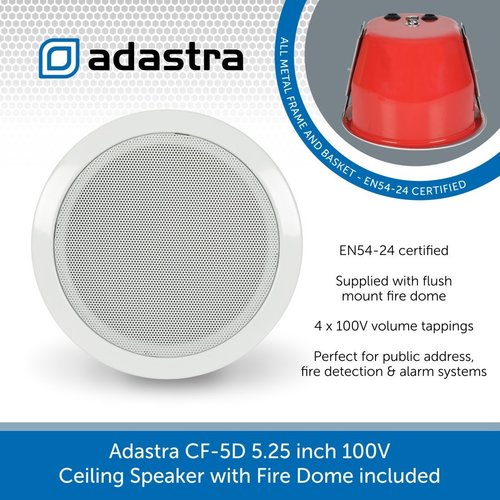

Fire Dome EN54 Ceiling Speaker
5.25 inches 6W
Product Code: 952.205
Fire Dome Ceiling Speaker
100V ceiling speaker with a rear dome housing to provide an effective barrier against fire. The dome can be removed from the speaker unit for convenient installation into a ceiling cavity with spring loaded wire fitting for the speaker unit to pull into the dome for a neat flush fit. Screw terminals on the speaker unit offer 4 volume tappings at 100V. Certified to EN54 standard for compliance with fire detection and alarm systems requirements.
EN54-24 certified
Supplied with flush mount fire dome
4 x 100V volume tappings
Spring loaded speaker retainers
All metal frame and basket
Fire-resistant cable to 95°C
Ceramic screw terminals
Specification : Common
100V line tappings 0.75W, 1.5W, 3W, 6W
Fire rating EN54-24
SPL @ 1W/1m 92dB
Frame material Steel (powder coated)
Frequency response 130Hz - 15kHz
Cutout 160mmØ
Driver 135mmØ (5.25") reinforced paper cone
Dimensions120 x 180mmØ
Weight 1.23kg
