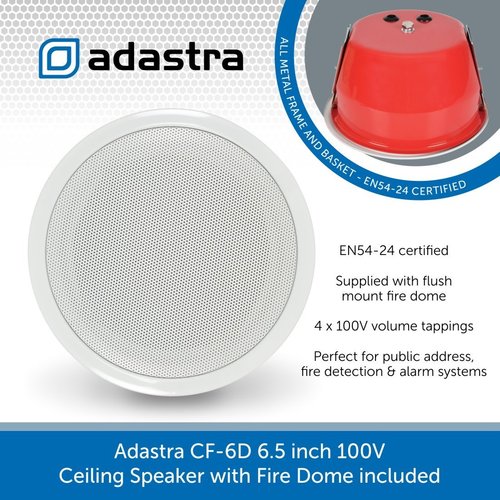

Ceiling Speaker - with Fire Dome EN54

Fire Dome Ceiling Speaker

100V ceiling speaker with a rear dome housing to provide an effective barrier against fire. The dome can be removed from the speaker unit for convenient installation into a ceiling cavity with spring loaded wire fitting for the speaker unit to pull into the dome for a neat flush fit. Screw terminals on the speaker unit offer 4 volume tappings at 100V. Certified to EN54 standard for compliance with fire detection and alarm systems requirements.

EN54-24 certified

Supplied with flush mount fire dome

4 x 100V volume tappings

Spring loaded speaker retainers

All metal frame and basket

Fire-resistant cable to 95°C

Ceramic screw terminals

Specification : Common

100V line tappings 0.75W, 1.5W, 3W, 6W

Fire rating EN54-24

SPL @ 1W/1m 92dB

Frame material Steel (powder coated)

Frequency response 120Hz - 18kHz

Cutout 204mmØ

Driver 165mmØ (6.5") reinforced paper cone

Dimensions 135 x 235mmØ

Weight 1.58kg
