PA 100V Line Mixer Amplifier USB/SD/FM/Bluetooth

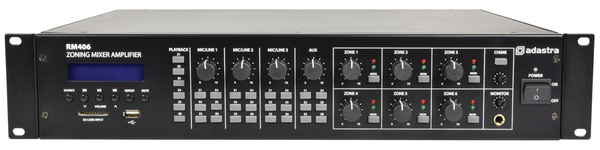

RM406 100V Mixer Amplifier 6 x 40W + USB/SD/FM/Bluetooth

Zone mixer-amplifier with 6 x 40W class D power section for 100V or 4/8 Ohms speakers. Each zone can be monitored from the front panel via a headphone output with volume control. 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player with Bluetooth receiver can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources.

Integral USB/SD/FM audio player

Internal Bluetooth receiver

100V or 4/8 Ohms operation

6 independent output zones

3 mic/line and 1 auxiliary input

Mic priority and chime functions

Switchable +20V phantom power

24V mute contacts

Monitor headphones output

Specification

Power supply  240Vac, 50Hz (IEC)

Power output  6 x 40W rms

Amplifier : construction  Class D + transformer outputs

Audio source  USB/SD/FM/BT audio player

Inputs   3 x mic/line (XLR/jack), auxiliary 2 x RCA

Zone outputs: line  6 x RCA (mono)

Zone outputs: speaker    6 x terminal outputs 100V / 8 Ohms / 4 Ohms / Com

Phantom power+20V switchable to each XLR

Monitor outputs   6.3mm stereo phones, 2 x RCA line

Mute+24V relay contacts

THD<0.76% @ 1kHz

Input impedance    1k Ohms (mic/line)

Input sensitivity-11dB (line), -46dB (mic)

SNR84dB (line), 82dB (mic)

Bluetooth version   2.0

Frequency response   100Hz - 24kHz

Dimensions   433 x 89 x 403mm

Weight    11kg

The box for this item contains :

RM406 Zoning mixer-amplifier

Rack-mounting brackets

IEC mains lead
