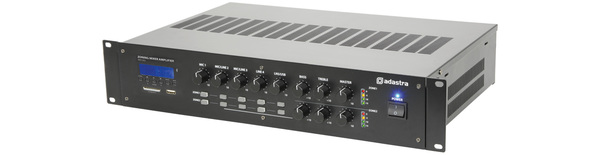

2-zone Mixer-amplifier + USB/SD/FM/Bluetooth
2 x 120W rms
Product Code: 953.163
$769.00
Pay it in 4 payments of $192.25 with
| Buy 1+ | $769.00 (incl. GST) |
2-zone Mixer-amplifier + USB/SD/FM/Bluetooth
Mixer-amplifier with 2 separate 120W outputs to 100V or 4/8 Ohms speakers. Inputs for mic, 2 x mic/line and 2 line inputs with an integral USB/SD/FM player and Bluetooth receiver can be enabled independently to either of the 2 zones. Mic 1 channel has a variable override and switchable phantom power for use with condenser microphones. Designed for installations where independent paging and audio to 2 separate zones is needed.
- Integral USB/SD/FM audio player
- Internal Bluetooth receiver
- 100V or 4/8 Ohms operation
- Can be configured as a stereo 100V amplifier
- 5 input channels
- Switchable +20V phantom power
- Switchable priority for channel 1
Specification
- Power supply230Vac, 50Hz (IEC)
- Power : output 2 x 120W rms
- Audio sourceUSB/SD/FM/BT audio player
- Inputs1 x mic (XLR), 2 x mic/line (jack), 2 x line (twin RCA)
- Zone outputs: line2 x RCA
- Zone outputs: speaker 2 x terminal outputs 100V/8 Ohms/4 Ohms/com
- Phantom power+20V switchable to Mic.1 XLR
- THD<0.76% @ 1kHz
- Input impedance 1k Ohms (mic/line)
- Input sensitivity-11dB (line), -46dB (mic)
- SNR84dB (line), 82dB (mic)
- Bluetooth version2.1
- Frequency response100Hz - 20kHz
- Dimensions 483 x 320 x 88mm
- Weight 11.24kg
Manuals and Downloads
Adastra
Founded in 1949, Adastra has earned a reputation for delivering high quality public address systems. Adastra strives to provide complete and versatile solutions for commercial installations, with specialist products provided for zoning, noise pollution control, portable public address and induction...
