Compact Mixer-Amp, 60W 100V line or 8 Ohm

With USB / SD / Bluetooth

Product Code: 953.176


Pay it in 4 payments of $82.25 with Afterpay

Buy 1+ $329.00 (incl. GST)

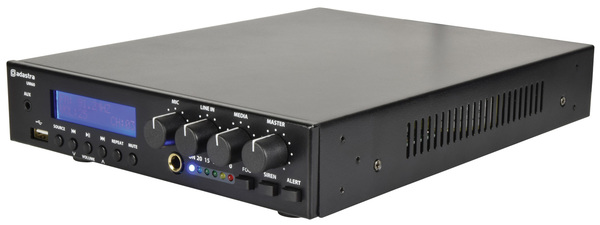

UM60 Compact 100V Mixer-Amp

100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.

  • Ultra compact form factor
  • Efficient class D amplifier design
  • Internal USB/FM/BT audio player
  • 100V line or 8 Ohms operation
  • Power supply 170-264Vac, 50Hz (IEC) or 24Vdc
  • Amplifier construction Class D + transformer output
  • Audio source Internal USB/FM/BT player
  • Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
  • Line output 2 x RCA (mono)
  • Speaker outputs Screw terminals - 100V / 8 Ohms / Com
  • DC power 24Vdc screw terminals
  • Mute 24V relay contacts
  • THD<0.4% @ 1kHz
  • Input impedance 1k Ohms (mic/line)
  • Input sensitivity -10dB (line), -45dB (mic)
  • SNR 80dB (line), 75dB (mic)
  • Frequency response 100Hz - 18kHz
