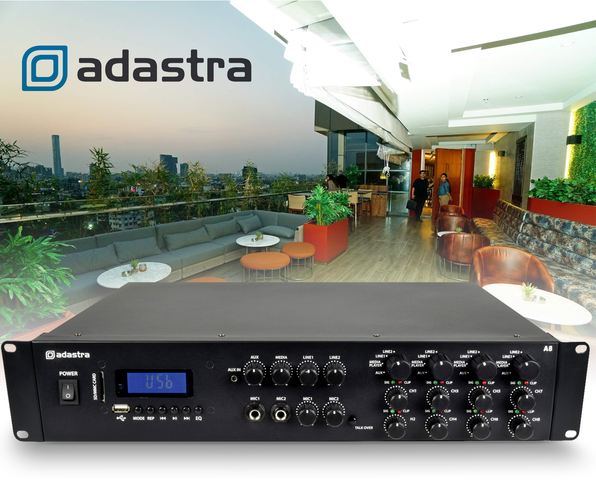

Quad Stereo Amplifier 8 x 200W rms A8
With USB / SD / Bluetooth
Volume Pricing
Highlights
- Available with 3 or 4 independent stereo outputs
- Media player with USB/SD playback
- FM radio tuner with external aerial connection
- B/T wireless receiver
- Power supply 230Vac, 50Hz (IEC)
- Fuse F5A, 250V
- Amplifier construction Class D
- Frequency response 20Hz - 20kHz ±0.5dB
- Microphone inputs 2 x 6.3mm jack (mono)
- Line inputs Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
- Input sensitivity : line 0.775Vrms
- Auxiliary input 3.5mm stereo jack
- Input sensitivity : aux 0.480Vrms
- Input impedance 20k Ohms (balanced), 10k Ohms (unbalanced)
- Audio source USB/SD mp3 playback, FM tuner, B/T receiver
- B/T wireless version2.3
- Input controls Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
- Antenna connection F type (FM tuner)
- Dynamic range
- THD +N
- Protection Thermal, over-current, over-voltage, short-circuit
- Dimensions 482 x 300 x 88mm
A8 Quad Stereo Amplfier 8x200W
Multi-zone amplifiers with 2 microphone inputs and a switchable stereo input for each zone. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a B/T wireless receiver and FM radio tuner. A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to all output zones at all times. Speakers are connected from the rear panel Euroblock terminals to deliver up to 200W per output at 4 Ohms. Designed for installations requiring high quality stereo sound in multiple rooms or listening areas.
| 953.408 |
|---|
| Line output | 8 x RCA |
|---|---|
| Output power rms @ 4 Ohms | 8 x 200W |
| Output power rms @ 8 Ohms | 8 x 100W |
| Speaker outputs | 4 x 4-terminal Euroblock |
| Output controls | 4 x source select, Ch1 - Ch8 level |
| Weight | 8.96kg |
