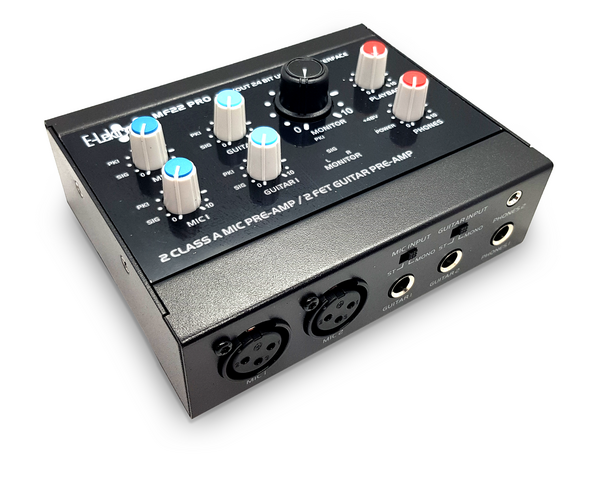

2x Class A Mic Preamp/Guitar DI/2 x 2 USB Audio Interface - MF-22PRO
24-bit / 48kHz Audio Resolution
Volume Pricing
This is an excellent sounding Mic Preamp/Guitar DI that just happens to have a 24/48 audio interface built in.
It would work great for a performing singer/songwriter who is performing live with a laptop/ipad.
It can also be run as a mic preamp/DI without a computer as long as it recieves USB power (from a phone charger for example)
While this is a great sounding option, please note that direct monitoring cannot be diabled i.e. you will always have the input signal present at the outputs.
If you do need direct monitoring disabled please refer to our newer audio interfaces 172.768 & 172.769
Audio Interface - 24 bit USB
MF-22PRO
General Specifications
| Input channels: | |
| MIC | 2 |
|---|---|
| GUITAR | 2 |
| USB PLAYBACK | 1 |
| Output channels: | |
| MAIN L/R OUT | 1 |
| PHONES | 2 |
| Bus: | |
| Stereo | 1 |
| Mic 1/2: | |
| GAIN, | max 56dB |
| Phantom Power | +48V, |
| Metering | 2 point LED meter |
| Guitar 1/2: | |
| GAIN | max 46dB |
| Metering | 2 point LED meter |
| USB Audio: | |
| USB Audio | Class 2.0 compliant |
| Sampling Frequency | Max 96 kHz |
| Bit Depth | 24-bit |
| Connector | Type B connector |
| Level Meter | 2x2 point LED meter |
| Max output level | 3 Vrms |
| Frequency response | ±0.5 dB, 20-20000Hz; |
| Dynamic Range | 98 dB |
| THD+N @ 1KHz | <= 0.03% |
| Stereo crosstalk | 92 dB |
| Power Requirements | DC 5V, 500mA |
| Power Consumption | Max 2.5W |
| Dimensions (WxHxD) | 130 mm x 103 mm x 38 mm |
| Net Weight | 0.58 kg |
